X986M

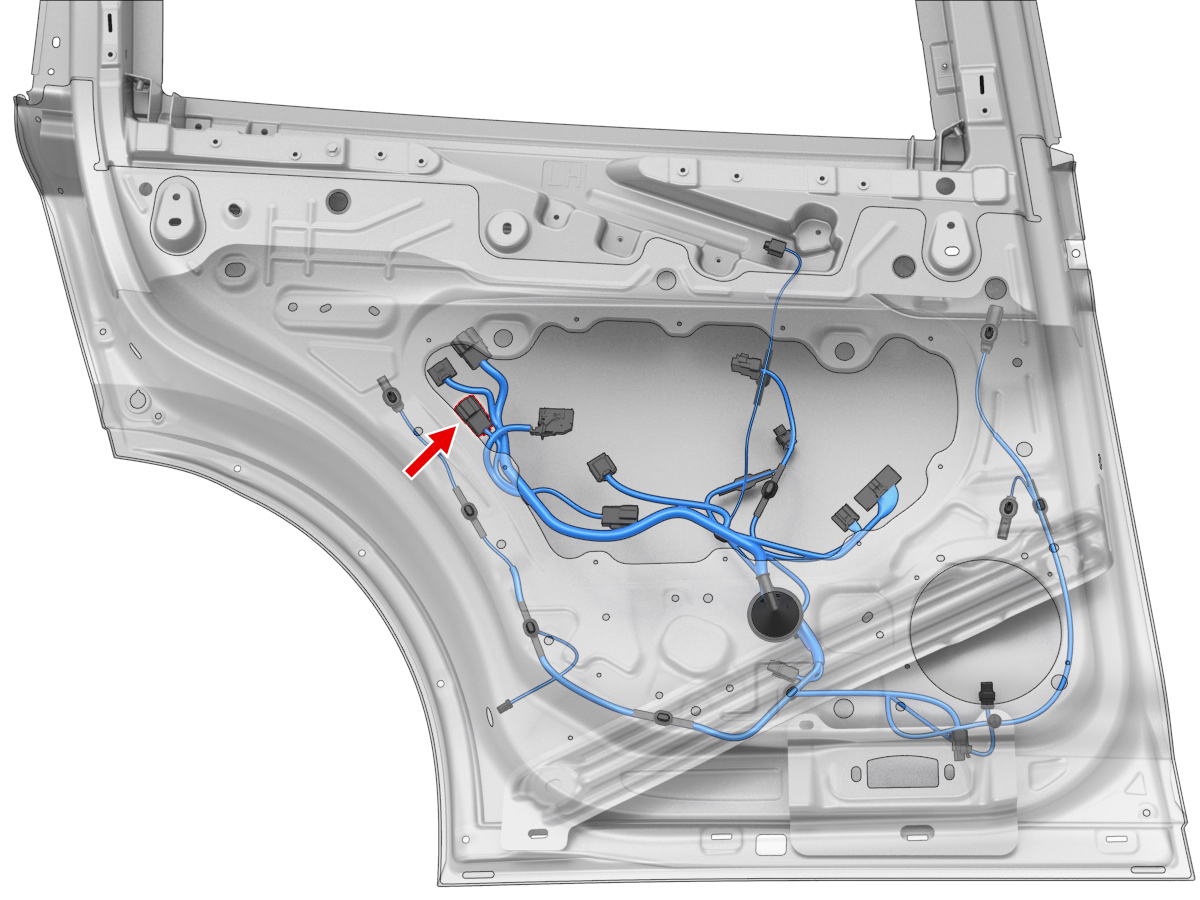

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35091060 | 1.2x0.6M | RD | 1.50 | X433 | 3 | ||
| 2 | unused | ||||||||
| 3 | DELPHI | 35091062 | 1.2x0.6M | GY | 0.50 | X433 | 2 | ||
| 4 | DELPHI | 35412744 | 1.2x0.6M | RD | 0.35 | X976M | 3 | ||
| 5 | DELPHI | 35091061 | 1.2x0.6M | BN | 0.75 | ||||
| 6 | DELPHI | 35412744 | 1.2x0.6M | YE | 0.35 | X976M | 2 | ||
| 7 | DELPHI | 35091060 | 1.2x0.6M | TN | 1.50 | X433 | 4 | ||
| 8 | unused | ||||||||
| 9 | DELPHI | 35091062 | 1.2x0.6M | GN | 0.50 | X433 | 6 | ||
| 10 | DELPHI | 35091062 | 1.2x0.6M | BU | 0.50 | X433 | 1 | ||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
