X988F

Tesla Part Number

1015287-10-A

Connector

MOLEX 33472-2006

Color

BK

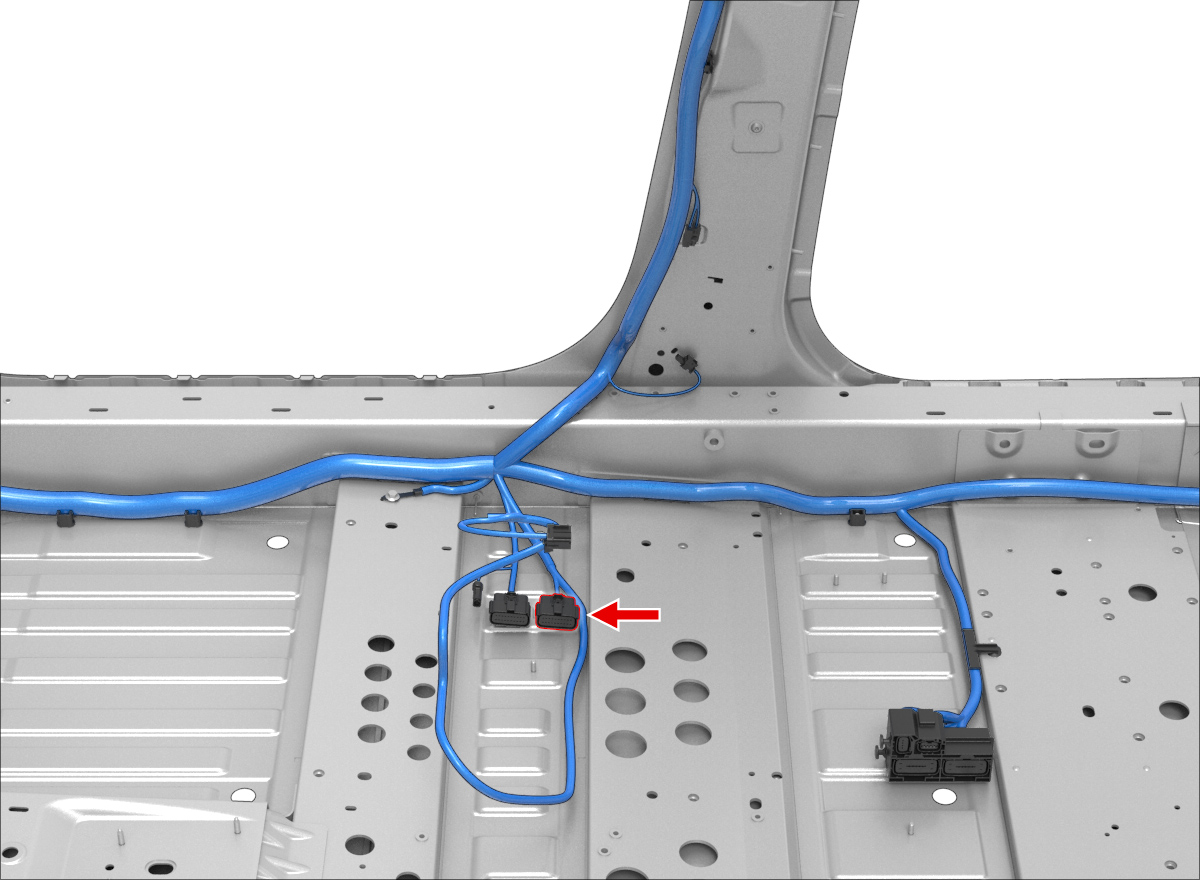

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3001	1.5x0.8F	VT	1.50	TESLA	MAT-120-240	X050A	31
2	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X1001	1
3	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X488	18
4	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X488	20
5	MOLEX	33012-3004	1.5x0.8F	GN/WH	0.35	TESLA	MAT-120-240	X050A	11
6	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X050A	12
7	unused
8	unused
9	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X488	19
10	MOLEX	33012-3001	1.5x0.8F	BN	1.50	TESLA	MAT-120-240	X560	8
11	MOLEX	33012-3001	1.5x0.8F	BU	1.50	TESLA	MAT-120-240	X050A	32
12	MOLEX	33012-3004	1.5x0.8F	TN	0.35	TESLA	MAT-120-240	X1001	2
13	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X051	27
14	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X051	28
15	unused
16	unused
17	MOLEX	33012-3004	1.5x0.8F	BU	0.50	TESLA	MAT-120-240	X914F	6
18	MOLEX	33012-3004	1.5x0.8F	GY	0.50	TESLA	MAT-120-240	X914F	7
19	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X488	17
20	MOLEX	33012-3001	1.5x0.8F	GN	1.50	TESLA	MAT-120-240	X560	7
