X988M

Tesla Part Number

1055685-00-A

Connector

MOLEX 33482-2101

Color

BK

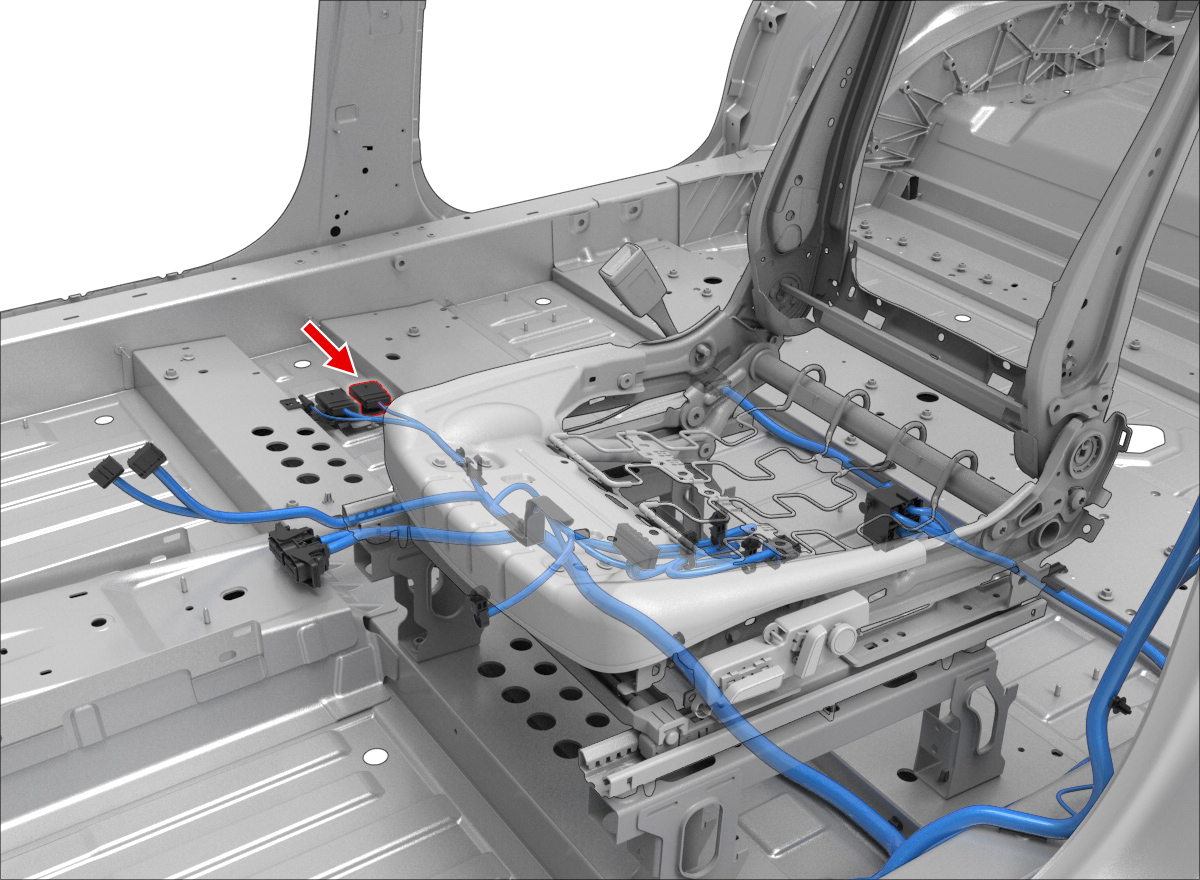

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0001	1.5x0.8M	VT	1.50	TESLA	MAT-120-240	X932M	1
2	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X200	1
3	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X982F	5
4	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X982F	6
5	MOLEX	33000-0004	1.5x0.8M	GN/WH	0.35	TESLA	MAT-120-240
6	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240
7	unused
8	unused
9	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X491	4
10	MOLEX	33000-0001	1.5x0.8M	BN	1.50	TESLA	MAT-120-240	X921M	3
11	MOLEX	33000-0001	1.5x0.8M	BU	1.50	TESLA	MAT-120-240	X930M	2
12	MOLEX	33000-0004	1.5x0.8M	TN	0.35	TESLA	MAT-120-240	X200	2
13	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X200	38
14	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X200	39
15	unused
16	unused
17	MOLEX	33000-0004	1.5x0.8M	BU	0.50	TESLA	MAT-120-240	X992M	10
18	MOLEX	33000-0004	1.5x0.8M	GY	0.50	TESLA	MAT-120-240	X992M	11
19	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X491	3
20	MOLEX	33000-0001	1.5x0.8M	GN	1.50	TESLA	MAT-120-240	X921M	6
