X990F

Tesla Part Number

1015287-10-A

Connector

MOLEX 33472-2006

Color

BK

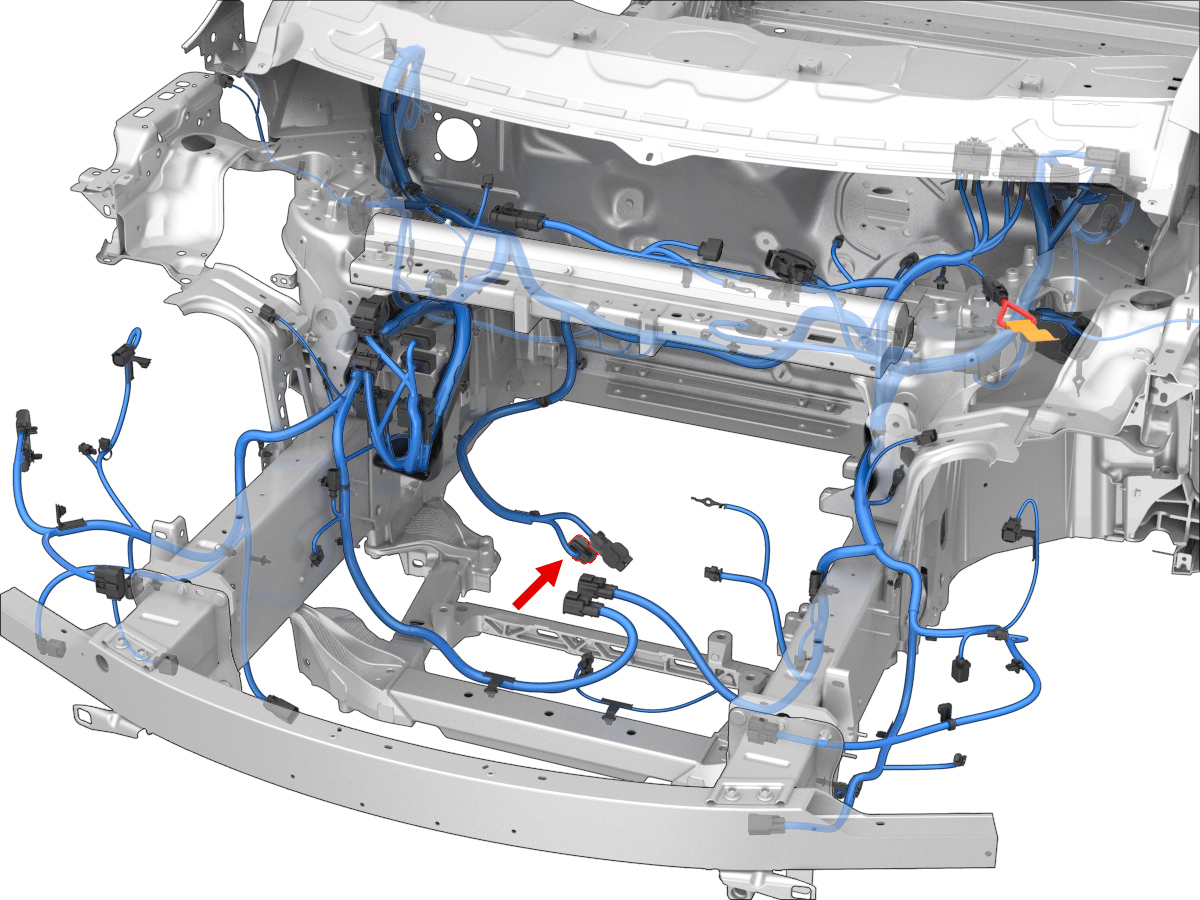

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X057	8
2	MOLEX	33012-3004	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X990F	12
3	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X913M	9
4	MOLEX	33012-3004	1.5x0.8F	RD	0.50	TESLA	MAT-120-240	X057	15
5	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X913M	6
6	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X913M	5
7	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X913M	8
8	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X913M	7
9	unused
10				BK	0.75	TESLA	MAT-120-240	G160	5
11				VT	1.00	TESLA	MAT-120-240	X900M	2
12	MOLEX	33012-3004	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X990F	2
13	MOLEX	33012-3004	1.5x0.8F	WH	0.50	TESLA	MAT-120-240	X913M	11
14	MOLEX	33012-3004	1.5x0.8F	YE	0.50	TESLA	MAT-120-240	X995F	18
15	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240
16	MOLEX	33012-3004	1.5x0.8F	BN/WH	0.35	TESLA	MAT-120-240
17	unused
18	unused
19	unused
20	unused
