X990M

Tesla Part Number

1610906-00-B

Connector

MOLEX 214468-0009

Color

BK

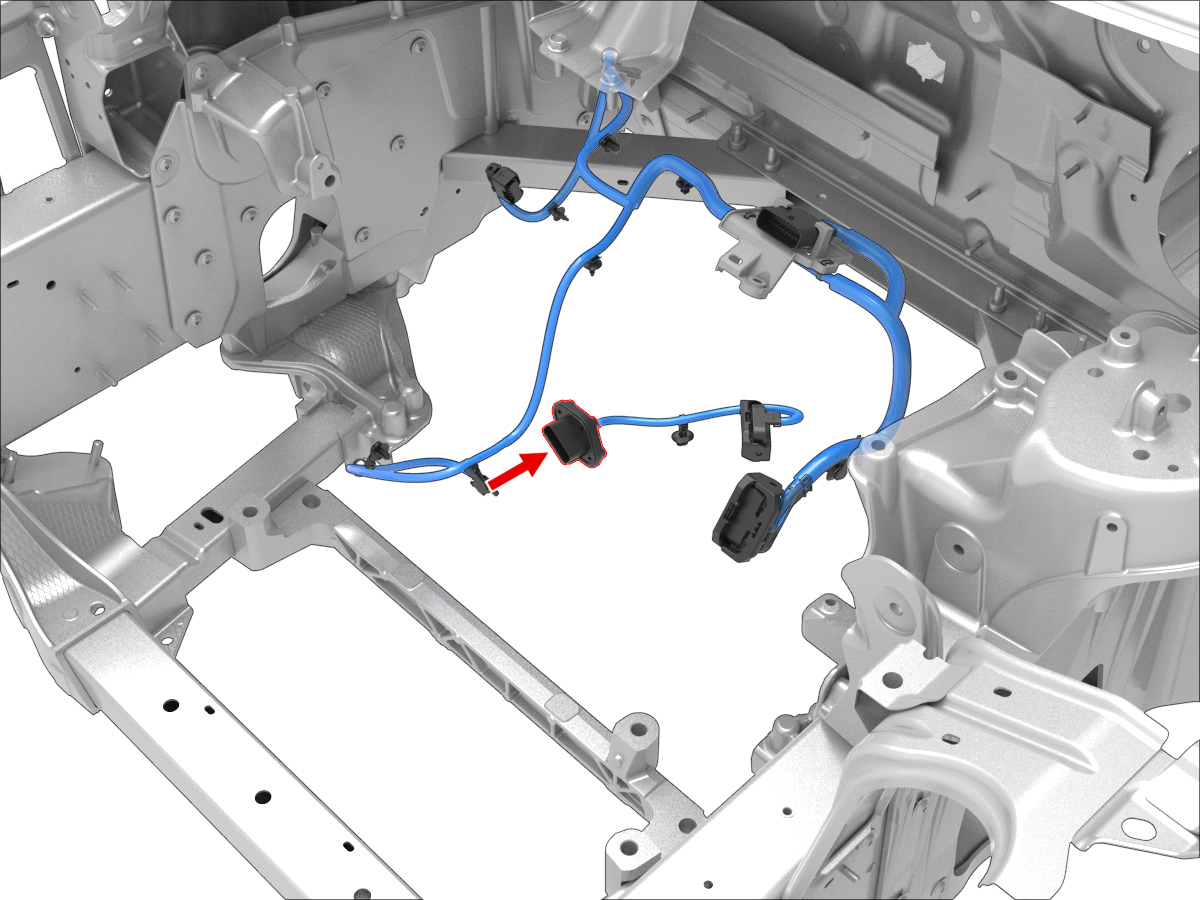

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	GN	0.50			X585	12
2	MOLEX	33000-0004	1.5x0.8M	GY	0.50			X585	1
3	MOLEX	33000-0004	1.5x0.8M	BU	0.35			X585	13
4	MOLEX	33000-0004	1.5x0.8M	RD	0.35			X585	8
5	MOLEX	33000-0004	1.5x0.8M	WH	0.35			X585	6
6	MOLEX	33000-0004	1.5x0.8M	VT	0.35			X585	7
7	MOLEX	33000-0004	1.5x0.8M	GY	0.35			X585	10
8	MOLEX	33000-0004	1.5x0.8M	RD	0.35			X585	11
9	unused
10	MOLEX	33000-0002	1.5x0.8M	BK	0.75			X585	9
11	MOLEX	33000-0002	1.5x0.8M	VT	1.00			X585	18
12	MOLEX	33000-0004	1.5x0.8M	YE	0.50			X585	3
13	unused
14	unused
15	MOLEX	33000-0004	1.5x0.8M	BN	0.35			X585	15
16	MOLEX	33000-0004	1.5x0.8M	BN/WH	0.35			X585	16
17	unused
18	unused
19	unused
20	unused
