X992M

Tesla Part Number

1051422-00-A

Connector

MOLEX 34986-1601

Color

BK

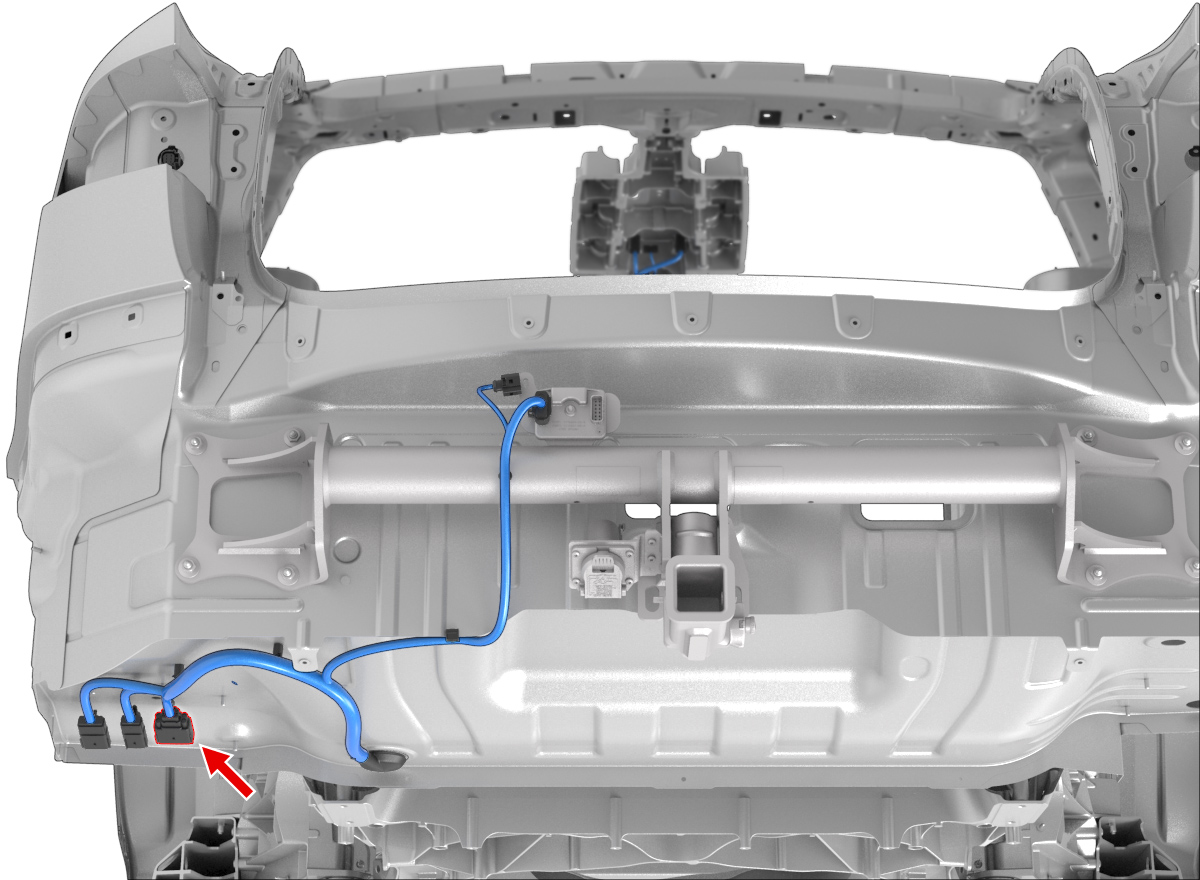

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1326031-5	2.8x0.8MS	YE	2.00	YAZAKI	7158-3113-40	X030B	4
2	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X966M	2
3	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X966M	10
4	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X966M	3
5	unused
6	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X965F	1
7	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X965F	2
8	unused
9	AMP	1326031-5	2.8x0.8MS	GN	2.00	YAZAKI	7158-3113-40	X030B	3
10	MOLEX	33000-0004	1.5x0.8M	BU	0.50	TESLA	MAT-120-240	X988M	17
11	MOLEX	33000-0004	1.5x0.8M	GY	0.50	TESLA	MAT-120-240	X988M	18
12	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X966M	11
13	unused
14	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X910F	2
15	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X910F	1
16	unused
