X995F

Tesla Part Number

1015287-10-A

Connector

MOLEX 33472-2006

Color

BK

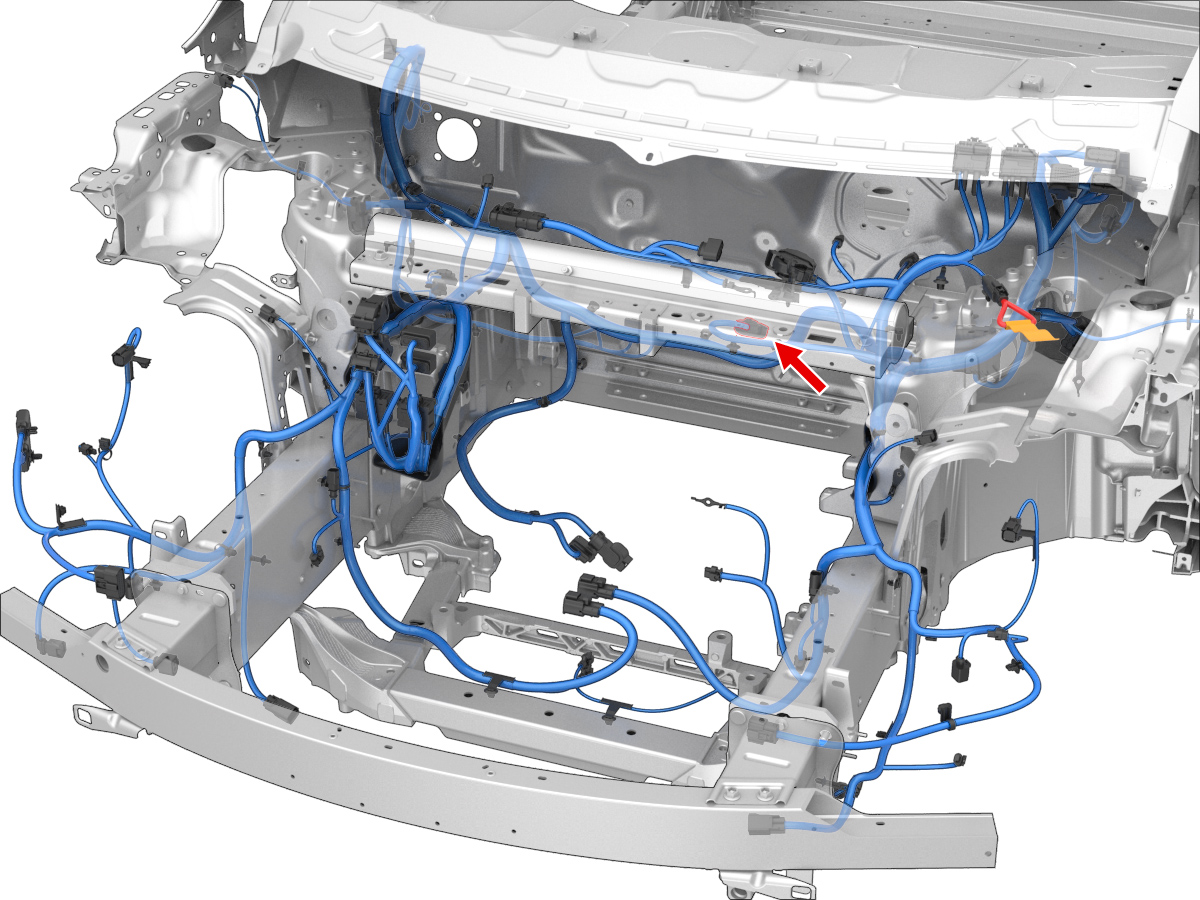

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X010	F3
2	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X010	C3
3	unused
4	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X037	20
5	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X037	21
6	unused
7	unused
8	unused
9	unused
10	MOLEX	33012-3001	1.5x0.8F	BK	1.50	TESLA	MAT-120-240	G150	2
11	MOLEX	33012-3001	1.5x0.8F	RD	1.50	TESLA	MAT-120-240	X010	K1
12	unused
13	unused
14	unused
15	unused
16	unused
17	MOLEX	33012-3001	1.5x0.8F	BK	1.50	TESLA	MAT-120-240	G150	8
18	MOLEX	33012-3004	1.5x0.8F	YE	0.50	TESLA	MAT-120-240	X990F	14
19	unused
20	MOLEX	33012-3004	1.5x0.8F	WH	0.50	TESLA	MAT-120-240	X913M	4
