X995M

Tesla Part Number

1055685-00-A

Connector

MOLEX 33482-2101

Color

BK

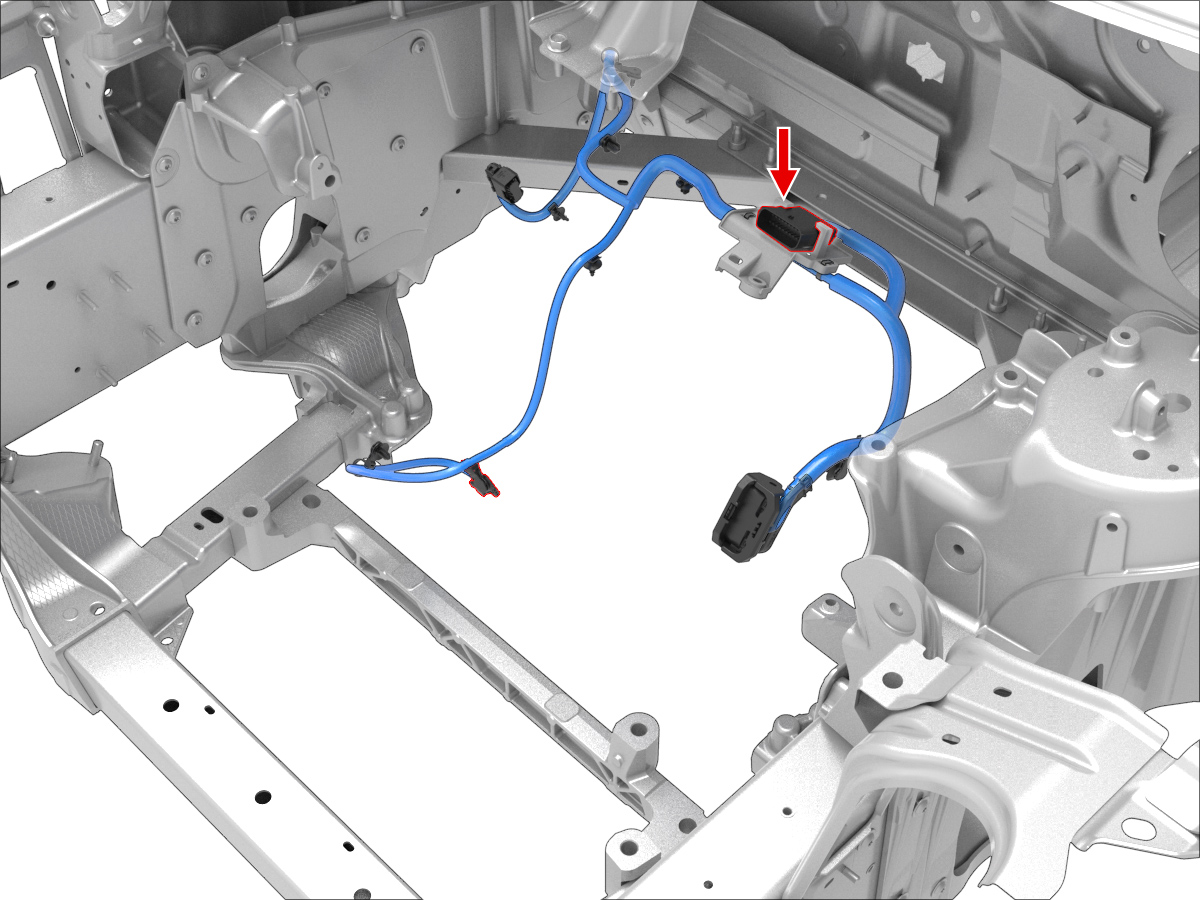

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X325	3
2	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X325	22
3	unused
4	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X325	2
5	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X325	12
6	unused
7	unused
8	unused
9	unused
10	MOLEX	33000-0004	1.5x0.8M	BK	0.50	TESLA	MAT-120-240	X325	13
11				RD	1.00	TESLA	MAT-120-240	X327	1
12	unused
13	unused
14	unused
15	unused
16	unused
17				BK	1.00	TESLA	MAT-120-240	X327	3
18	MOLEX	33000-0004	1.5x0.8M	YE	0.50	TESLA	MAT-120-240	X325	23
19	MOLEX	33000-0004	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X325	4
20	unused
