X996M

Tesla Part Number

1055685-01-A

Connector

MOLEX 33482-2102

Color

GY

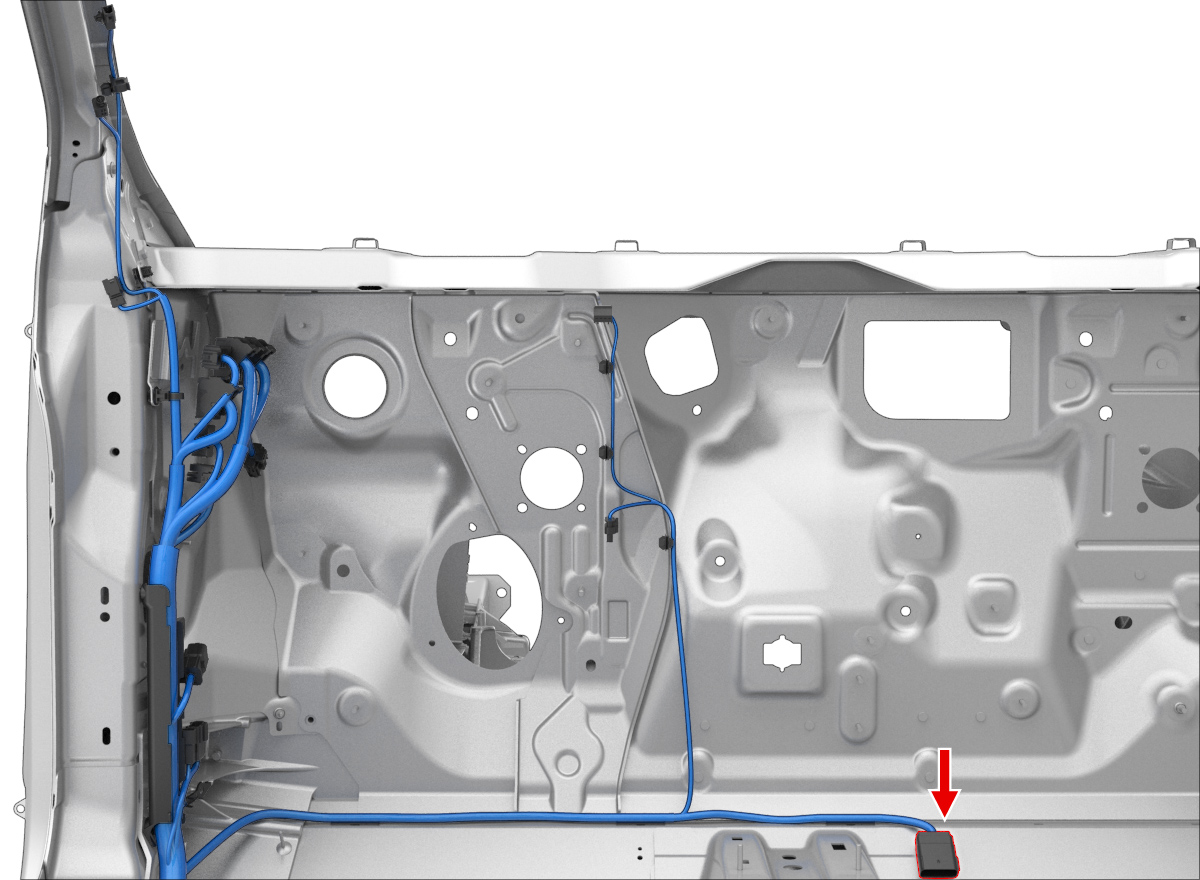

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0002	1.5x0.8M	BU	0.75	TESLA	MAT-120-240	X981M	1
2	MOLEX	33000-0002	1.5x0.8M	WH	0.75	TESLA	MAT-120-240	X981M	2
3	MOLEX	33000-0004	1.5x0.8M	VT	0.50	TESLA	MAT-120-240	X940M	6
4	MOLEX	33000-0004	1.5x0.8M	RD	0.50	TESLA	MAT-120-240	X940M	7
5	MOLEX	33000-0002	1.5x0.8M	YE	0.75	TESLA	MAT-120-240	X981M	6
6	MOLEX	33000-0002	1.5x0.8M	VT	0.75	TESLA	MAT-120-240	X981M	5
7	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X201	47
8	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X201	48
9	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X940M	4
10	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X940M	5
11	MOLEX	33000-0004	1.5x0.8M	GN	0.50	TESLA	MAT-120-240	X940M	1
12	MOLEX	33000-0004	1.5x0.8M	GY	0.50	TESLA	MAT-120-240	X940M	2
13	MOLEX	33000-0002	1.5x0.8M	BU	0.75	TESLA	MAT-120-240	X921M	2
14	MOLEX	33000-0002	1.5x0.8M	VT	0.75	TESLA	MAT-120-240	X921M	5
15	MOLEX	33000-0004	1.5x0.8M	YE/WH	0.35	TESLA	MAT-120-240	X030A	15
16	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X030A	3
17	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X200	44
18	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X200	43
19	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X940M	9
20	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X940M	10
