X997F

Tesla Part Number

1034184-10-A

Connector

MOLEX 33472-2007

Color

GY

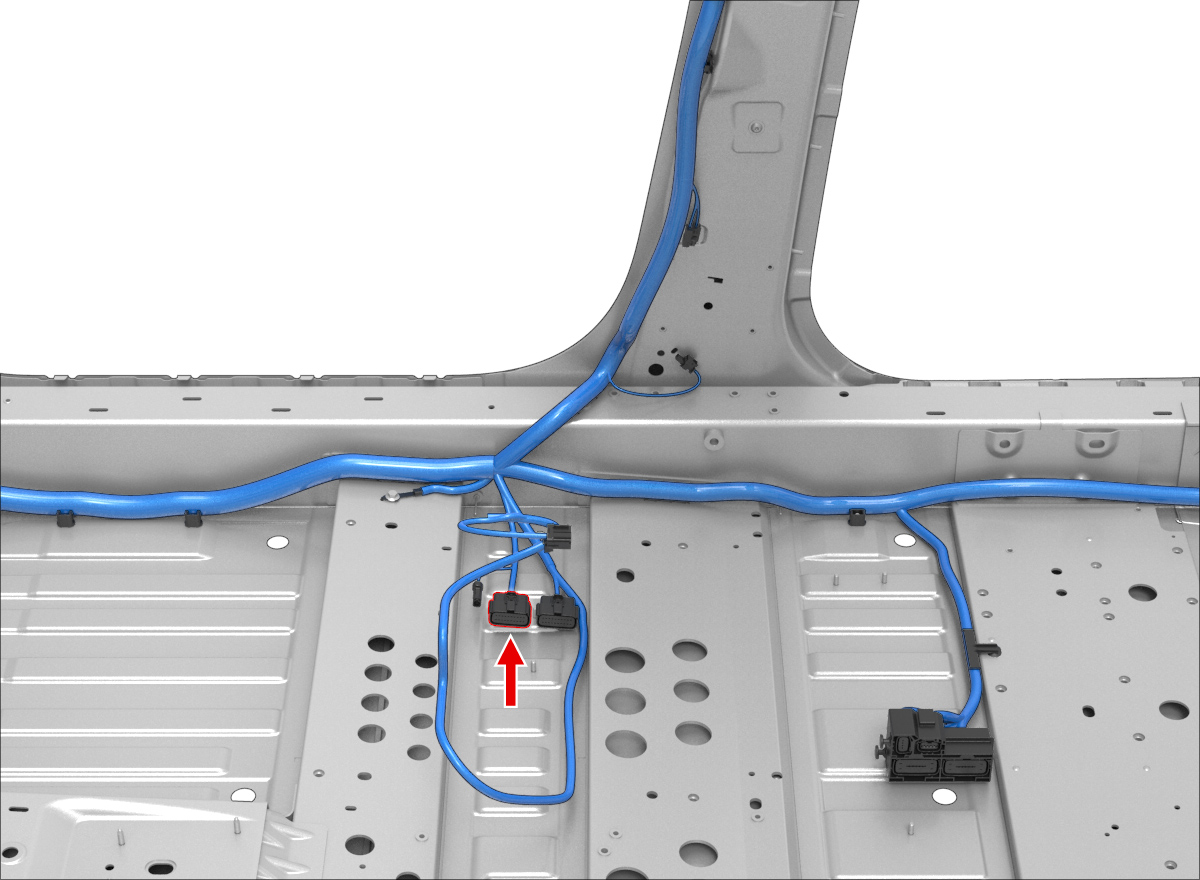

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X214	1
2	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X214	2
3	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X911F	13
4	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X911F	14
5	MOLEX	33012-3004	1.5x0.8F	BN/WH	0.35	TESLA	MAT-120-240	X060A	14
6	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X060A	1
7	unused
8	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X914F	10
9	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X914F	9
10	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X914F	8
11	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X207	1
12	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X207	2
13	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X222	1
14	MOLEX	33012-3004	1.5x0.8F	TN	0.35	TESLA	MAT-120-240	X222	2
15	MOLEX	33012-3004	1.5x0.8F	YE	0.50	TESLA	MAT-120-240	X915F	11
16	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X978M	9
17	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X978M	10
18	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X914F	20
19	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X914F	19
20	MOLEX	33012-3004	1.5x0.8F	BN	0.35	TESLA	MAT-120-240	X914F	18
