GND_JC_RRD_F - x-lhd-sop8

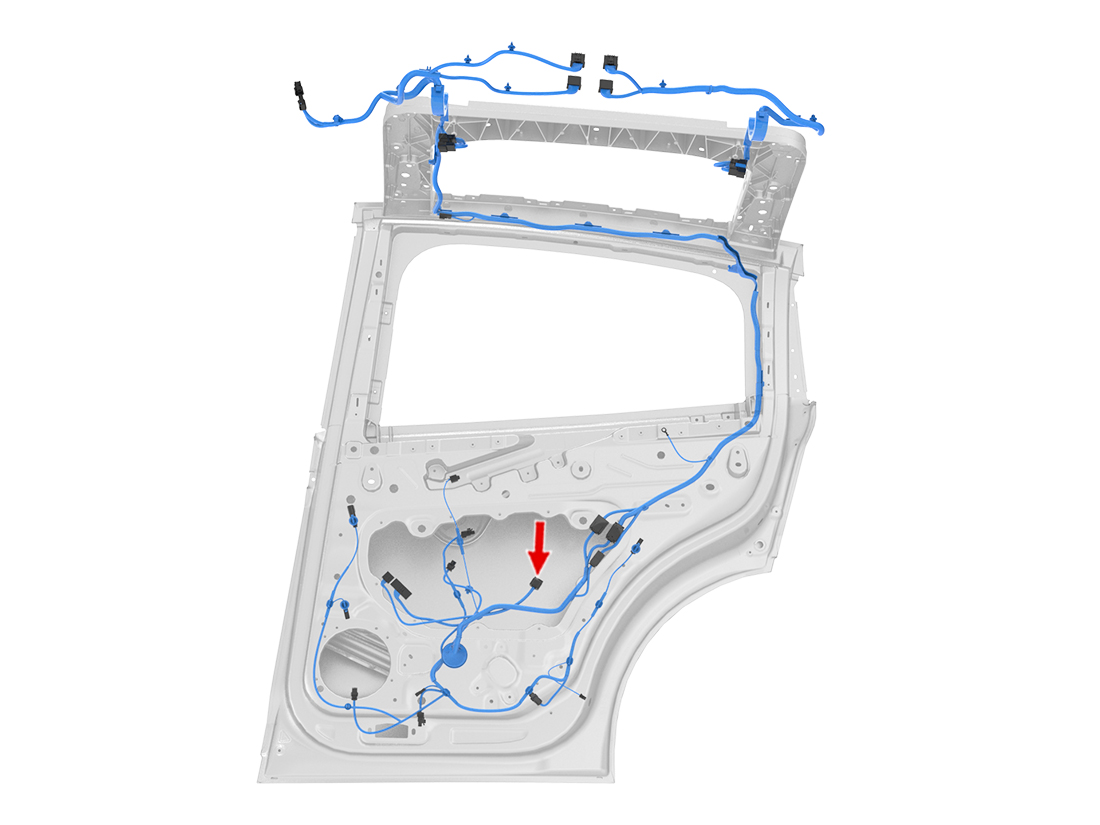

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0213 | 1.5x0.64F | RD | 1.00 | X591 | 1 | ||
| 2 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD | 1.50 | X975F | 10 | ||
| 3 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.35 | X451 | 24 | ||
| 4 | SUMITOMO | 8240-0213 | 1.5x0.64F | BU | 1.00 | X591 | 2 | ||
| 5 | SUMITOMO | 8240-0214 | 1.5x0.64F | BU | 1.50 | X975F | 18 | ||
| 6 | SUMITOMO | 8240-0215 | 1.5x0.64F | BU | 0.35 | X451 | 23 | ||
| 7 | |||||||||
| 8 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X464 | 2 | ||
| 9 | SUMITOMO | 8240-0213 | 1.5x0.64F | BK/WH | 0.75 | X453 | 7 | ||
| 10 | SUMITOMO | 8240-0213 | 1.5x0.64F | BK | 1.00 | X975F | 17 | ||
| 11 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK/BU | 0.50 | X628 | 2 | ||
| 12 | |||||||||
