X011 - x-lhd-sop8

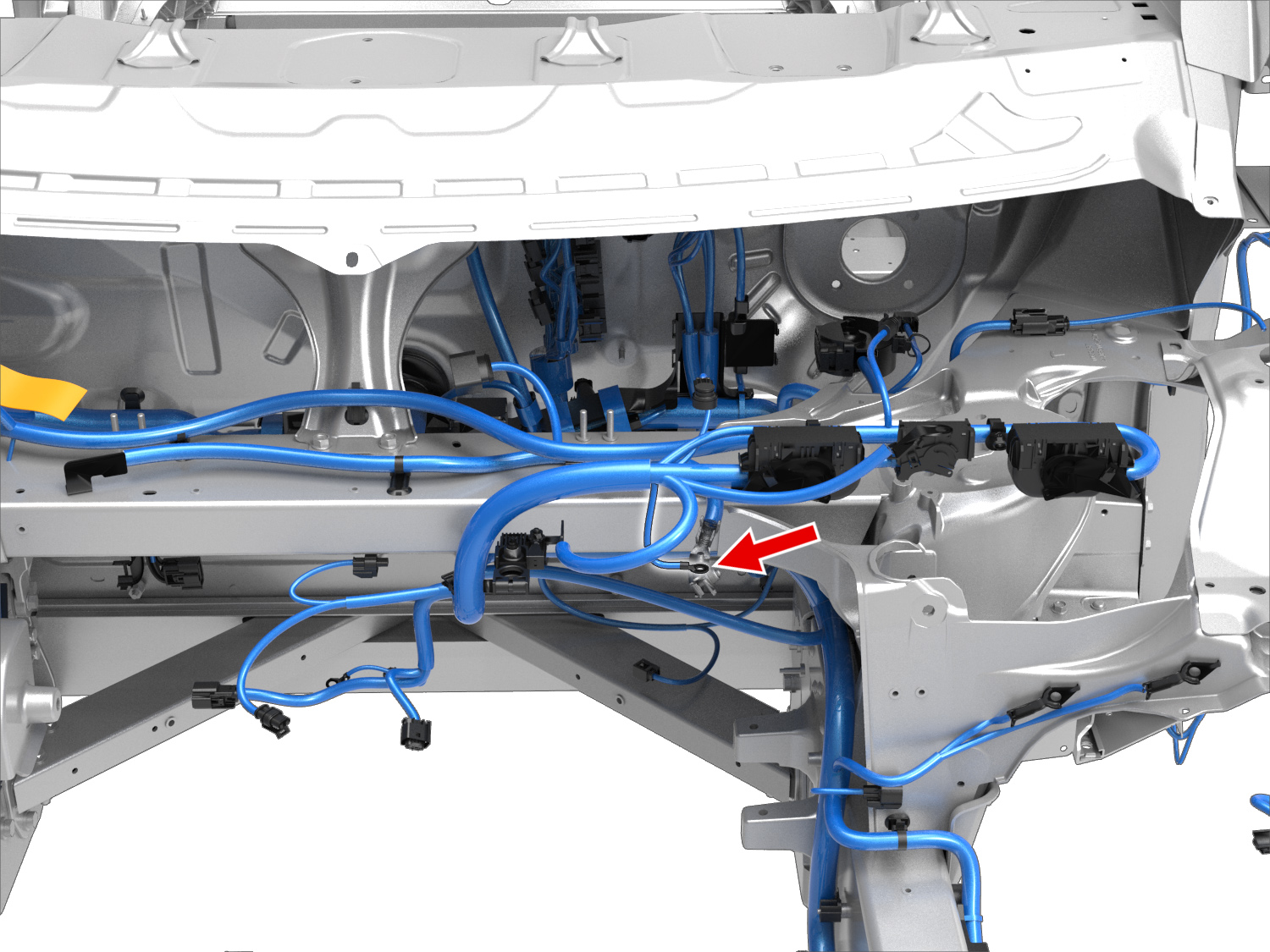

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | GEN | PIA-TSNS | PIA | BU | 0.35 | X012 | 4 | ||
| 2 | GEN | PIA-TSNS | PIA | BU | 0.35 | X012 | 5 |
