X066 - x-lhd-sop8

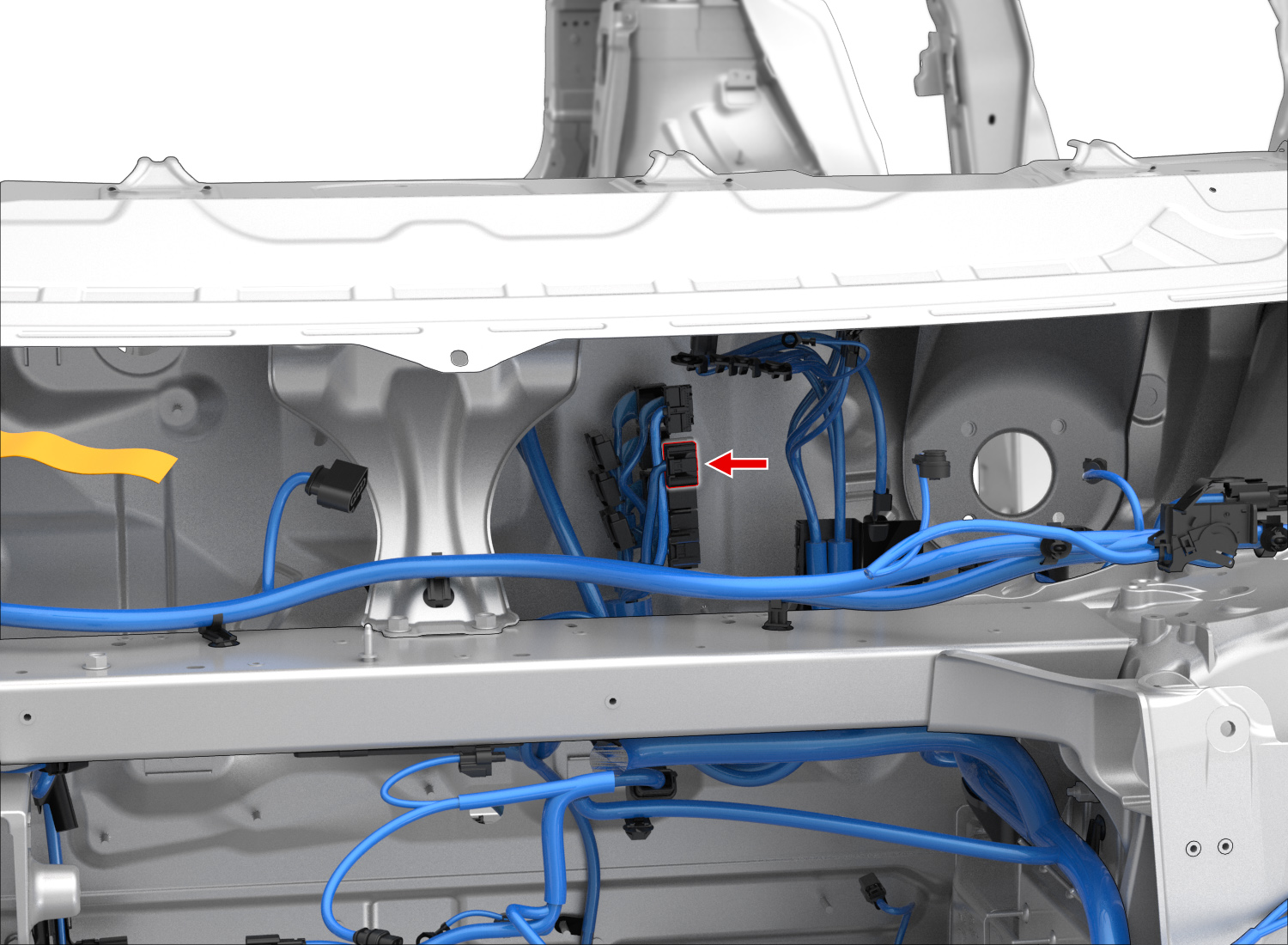

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1981341-2 | 2.3x0.6F | BK | 2.00 | GND_FR_RH1 | 1 | ||
| 2 | |||||||||
| 3 | |||||||||
| 4 | AMP | 1674311-1 | 0.64F | GY | 0.35 | X089 | 2 | ||
| 5 | AMP | 1674311-1 | 0.64F | GY/WH | 0.35 | X087 | 6 | ||
| 6 | AMP | 1674311-1 | 0.64F | GY | 0.35 | X087 | 5 | ||
| 7 | |||||||||
| 8 | |||||||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | AMP | 1981341-2 | 2.3x0.6F | RD/BU | 2.00 | X001 | 25 | ||
| 12 | |||||||||
| 13 | |||||||||
| 14 | AMP | 1674311-1 | 0.64F | BN | 0.35 | X089 | 3 | ||
| 15 | AMP | 1674311-1 | 0.64F | VT | 0.35 | X089 | 1 | ||
| 16 | AMP | 1674311-1 | 0.64F | WH | 0.35 | X087 | 2 | ||
| 17 | AMP | 1674311-1 | 0.64F | GN | 0.35 | X087 | 3 | ||
| 18 | AMP | 1674311-1 | 0.64F | RD | 0.35 | X087 | 1 | ||
| 19 | AMP | 1674311-1 | 0.64F | BU | 0.35 | X087 | 8 | ||
| 20 | AMP | 1674311-1 | 0.64F | YE | 0.35 | X087 | 4 | ||
