X100 - x-lhd-sop8

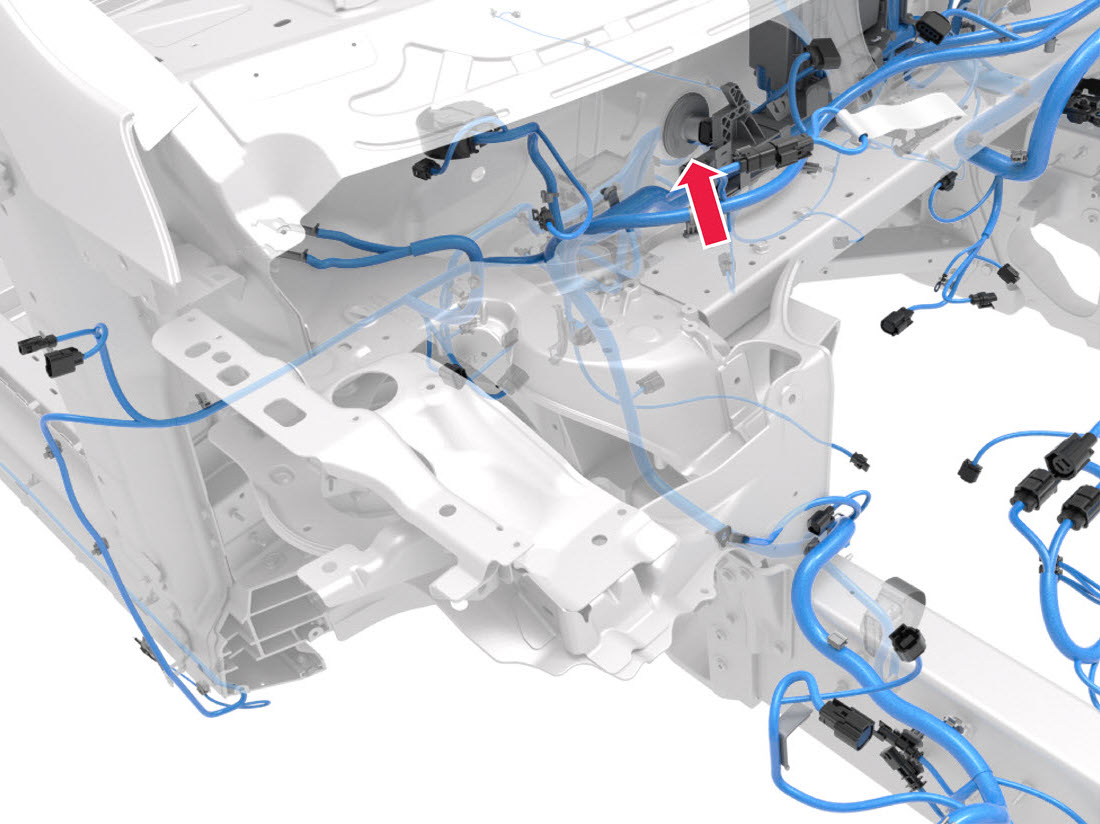

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | |||||||||
| 4 | MOLEX | 33012-3003 | 1.5x0.8F | BN | 0.50 | TESLA | MAT-120-240 | X003 | 15 |
| 5 | MOLEX | 33012-3003 | 1.5x0.8F | RD | 0.50 | TESLA | MAT-120-240 | X502 | 12 |
| 6 | MOLEX | 33012-3003 | 1.5x0.8F | BU | 0.50 | TESLA | MAT-120-240 | X502 | 2 |
| 7 | |||||||||
| 8 | |||||||||
| 9 | |||||||||
| 10 | MOLEX | 33012-3003 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-240 | GND_FR_RH2 | 1 |
| 11 | MOLEX | 33012-3003 | 1.5x0.8F | GN | 0.50 | TESLA | MAT-120-240 | X913F | 15 |
| 12 | MOLEX | 33012-3003 | 1.5x0.8F | YE/WH | 0.50 | TESLA | MAT-120-240 | X995F | 18 |
