X105 - x-lhd-sop8

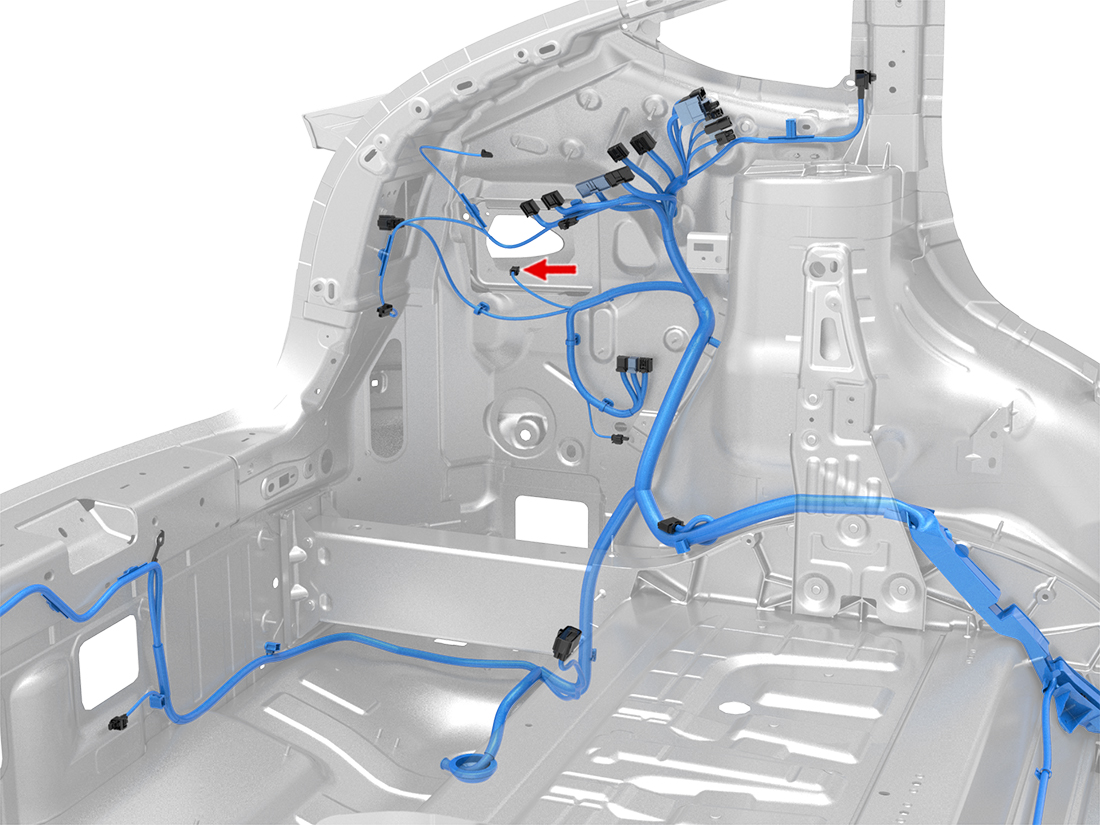

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-963715-1 | 0.63x0.63F | RD/BU | 0.50 | X020 | 4 | ||
| 2 | AMP | 5-963715-1 | 0.63x0.63F | BU | 0.50 | X090 | 2 | ||
| 3 | AMP | 5-963715-1 | 0.63x0.63F | RD/WH | 0.50 | X099 | 4 | ||
| 4 | AMP | 5-963715-1 | 0.63x0.63F | BK | 0.50 | GND_LR | 1 | ||
| 5 | |||||||||
| 6 | AMP | 5-963715-1 | 0.63x0.63F | RD | 0.50 | X099 | 3 | ||
