X106 - x-lhd-sop8

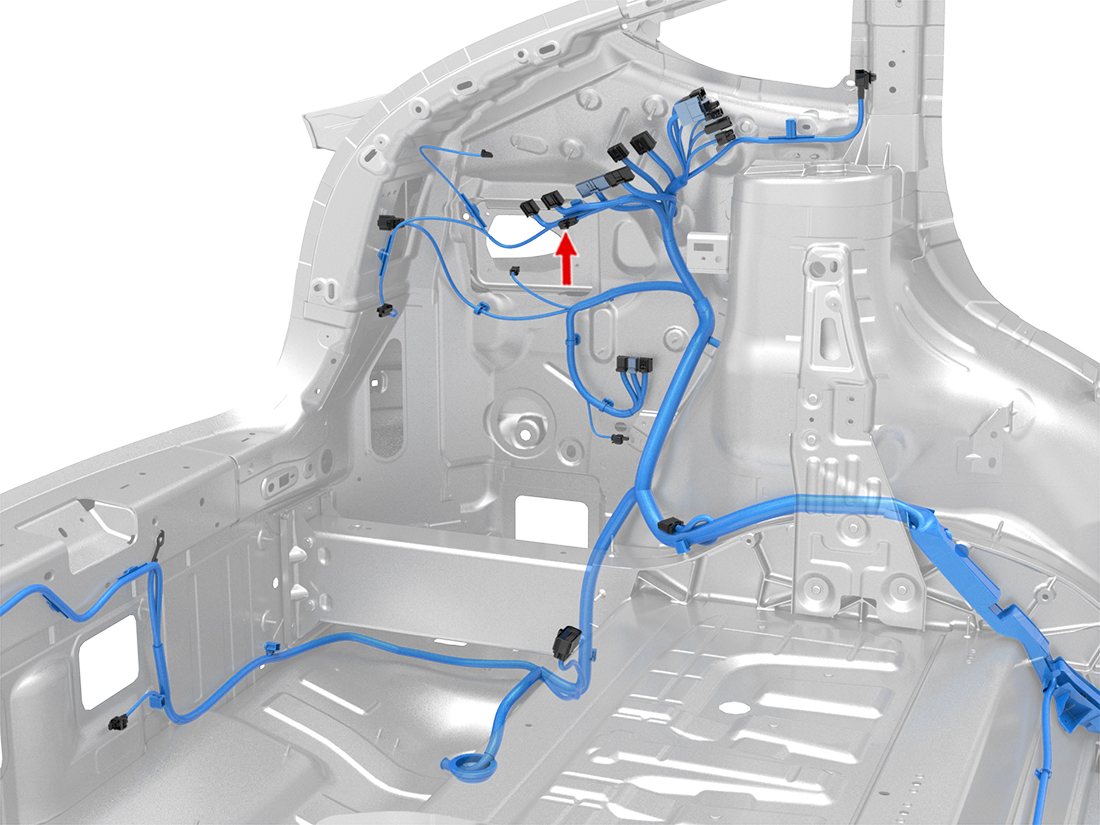

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 173633-2 | 1.8x0.64M | VT | 0.50 | X090 | 5 | ||
| 2 | AMP | 173633-2 | 1.8x0.64M | WH | 0.50 | X090 | 15 |
