X120A - x-lhd-sop8

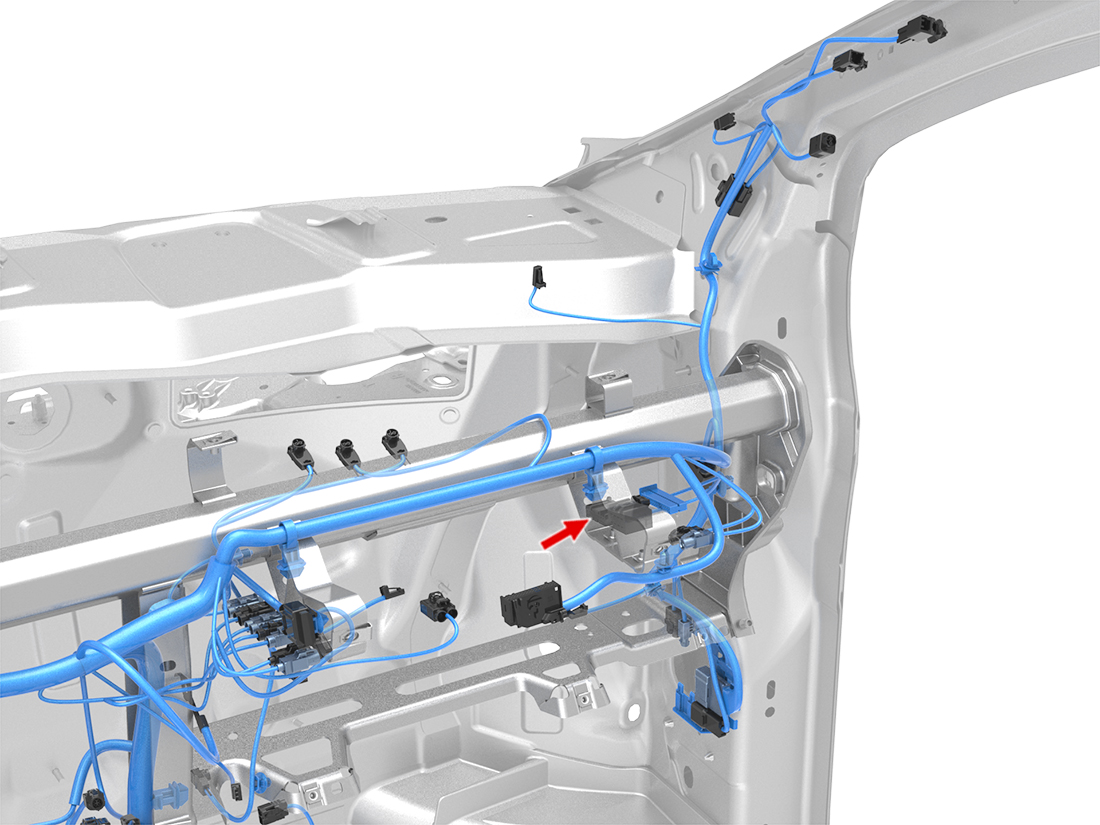

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0213 | 1.5x0.64F | BK/VT | 0.75 | X580 | 1 | ||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | SUMITOMO | 8100-3624 | 0.64x0.64F | YE/WH | 0.35 | X914F | 7 | ||
| 6 | SUMITOMO | 8100-3624 | 0.64x0.64F | YE | 0.35 | X914F | 17 | ||
| 7 | |||||||||
| 8 | |||||||||
| 9 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD/GN | 2.00 | X025 | 5 | ||
| 10 | |||||||||
| 11 | SUMITOMO | 8240-0213 | 1.5x0.64F | VT | 0.75 | X580 | 2 | ||
| 12 | |||||||||
| 13 | |||||||||
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 2.00 | GND_IP_R | 1 | ||
| 18 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 2.00 | GND_IP_L | 1 | ||
