X129 - x-lhd-sop8

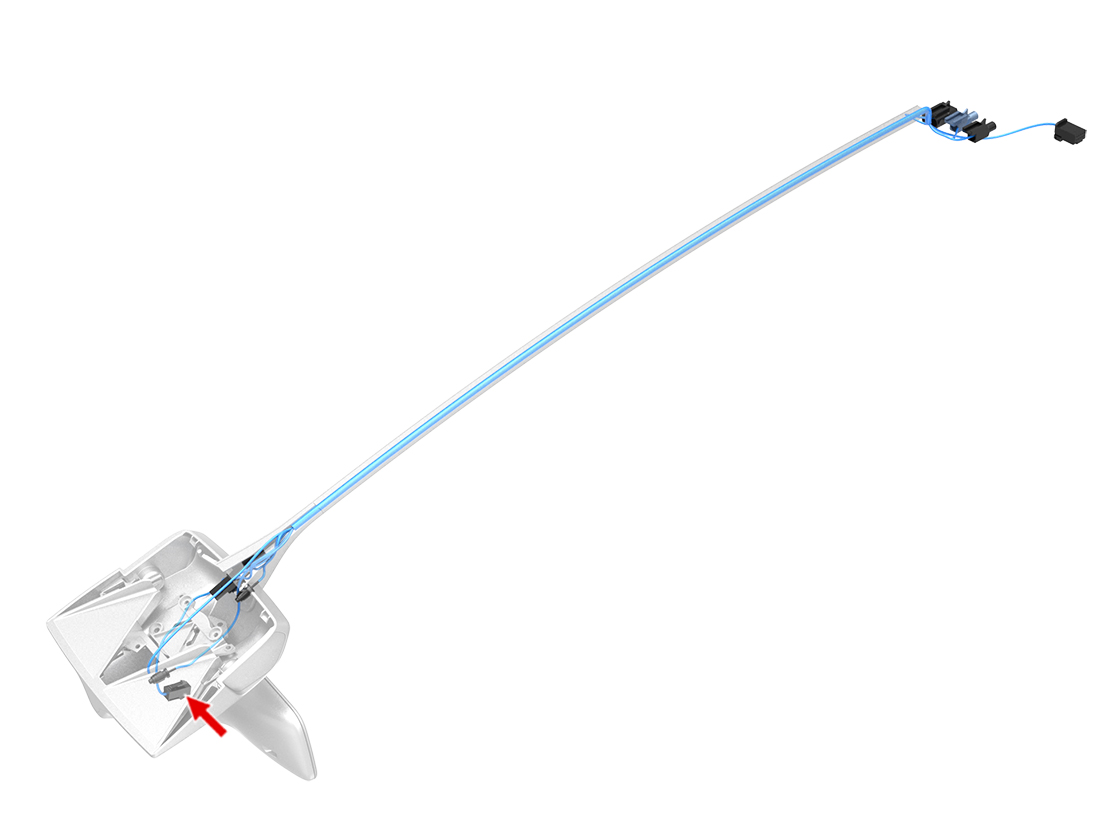

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 43031-0001 | 0.69x0.69M | RD/BU | 0.35 | X980F | 6 | ||
| 2 | MOLEX | 43031-0001 | 0.69x0.69M | BK | 0.35 | X980F | 10 | ||
| 3 | MOLEX | 43031-0001 | 0.69x0.69M | GN | 0.35 | X980F | 8 | ||
| 4 | |||||||||
