X152 - x-lhd-sop8

Tesla Part Number
1064887-01-A
Connector
YAZAKI 7287-1992-40
Color
GY

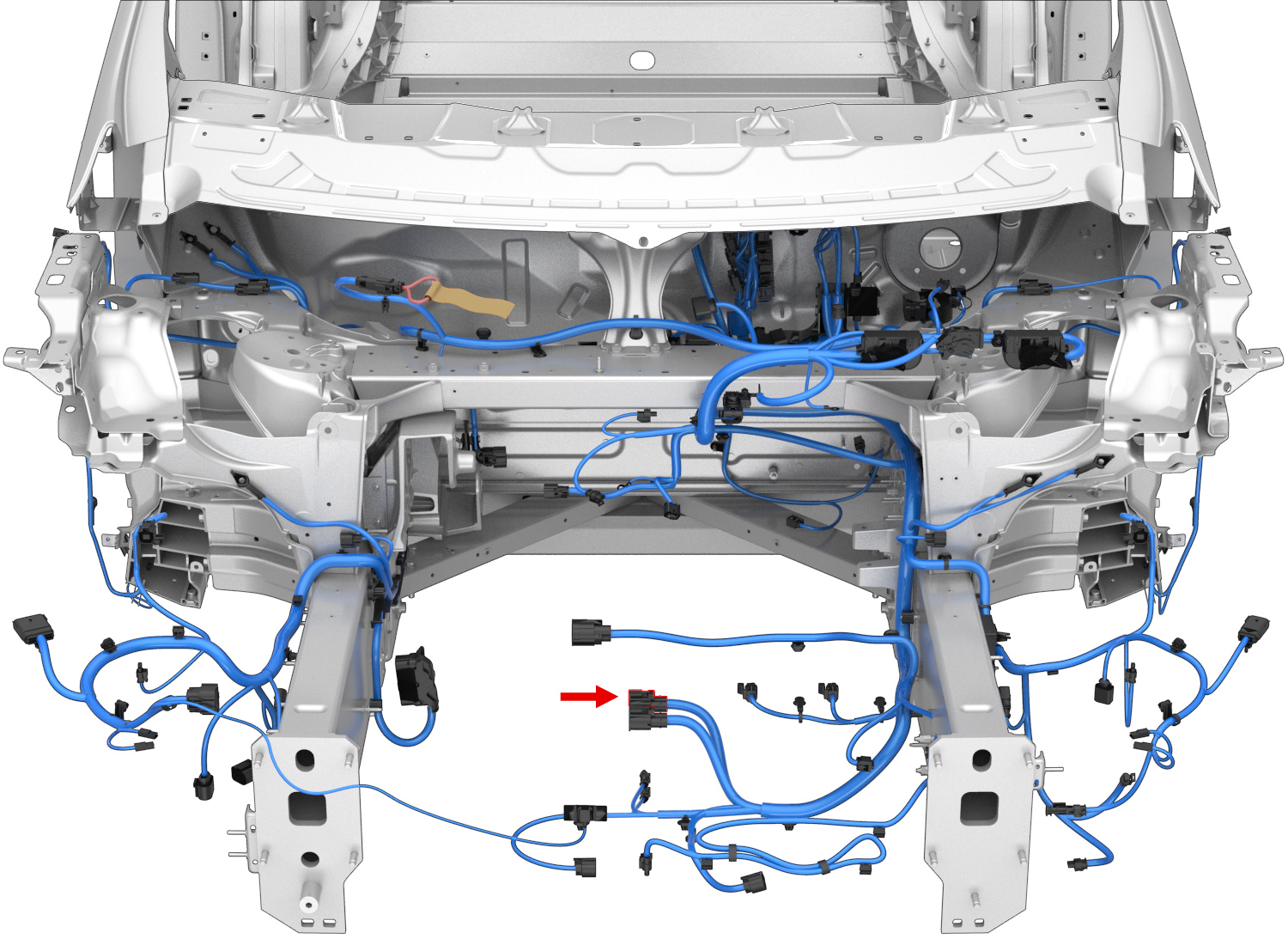

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1YAZAKI7116-5625-069.5x1.2FSRD/BK16YAZAKI7158-3672-50X0391
2YAZAKI7116-5625-069.5x1.2FSBK16YAZAKI7158-3672-50GND_EPAS1
