X156 - x-lhd-sop8

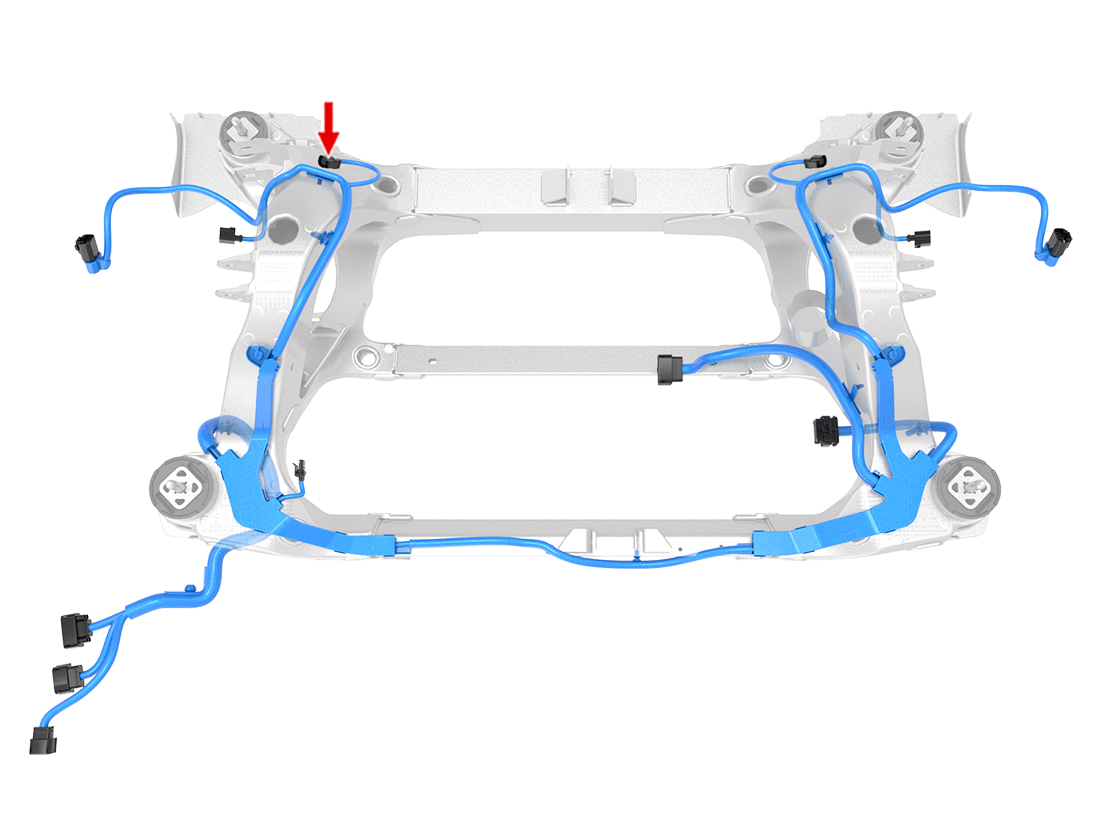

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 34083-2002 | 1.5X0.6FS | GN/WH | 0.50 | YAZAKI | 7158-3030-50 | X953F | 5 |
| 2 | MOLEX | 34083-2002 | 1.5X0.6FS | GN | 0.50 | YAZAKI | 7158-3030-50 | X953F | 6 |
