X160 - x-lhd-sop8

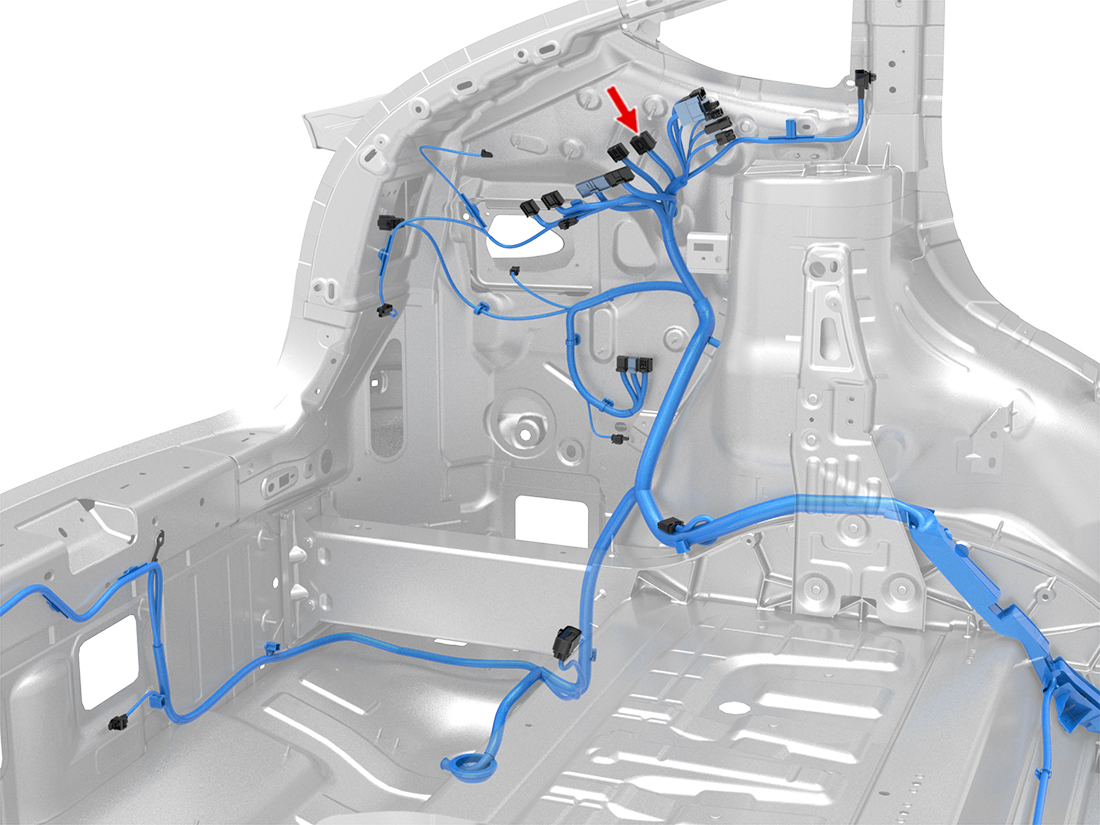

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3001 | 1.5x0.8F | BK | 2.00 | GND_LR | 1 | ||
| 2 | |||||||||
| 3 | MOLEX | 33012-3001 | 1.5x0.8F | BU | 2.00 | X952M | 9 | ||
| 4 | MOLEX | 33012-3001 | 1.5x0.8F | BN | 2.00 | X952M | 1 | ||
| 5 | MOLEX | 33012-3001 | 1.5x0.8F | GN | 2.00 | X952M | 8 | ||
| 6 | MOLEX | 33012-3001 | 1.5x0.8F | GY | 2.00 | X952M | 16 | ||
| 7 | BK | 2.00 | GND_LR | 1 | |||||
| 8 | RD/WH | 2.00 | X912M | 18 | |||||
| 9 | RD/BK | 2.00 | X024 | 3 | |||||
| 10 | |||||||||
