X168A - x-lhd-sop8

Tesla Part Number
1015403-00-A
Connector
YAZAKI 7183-4347
Color
WH

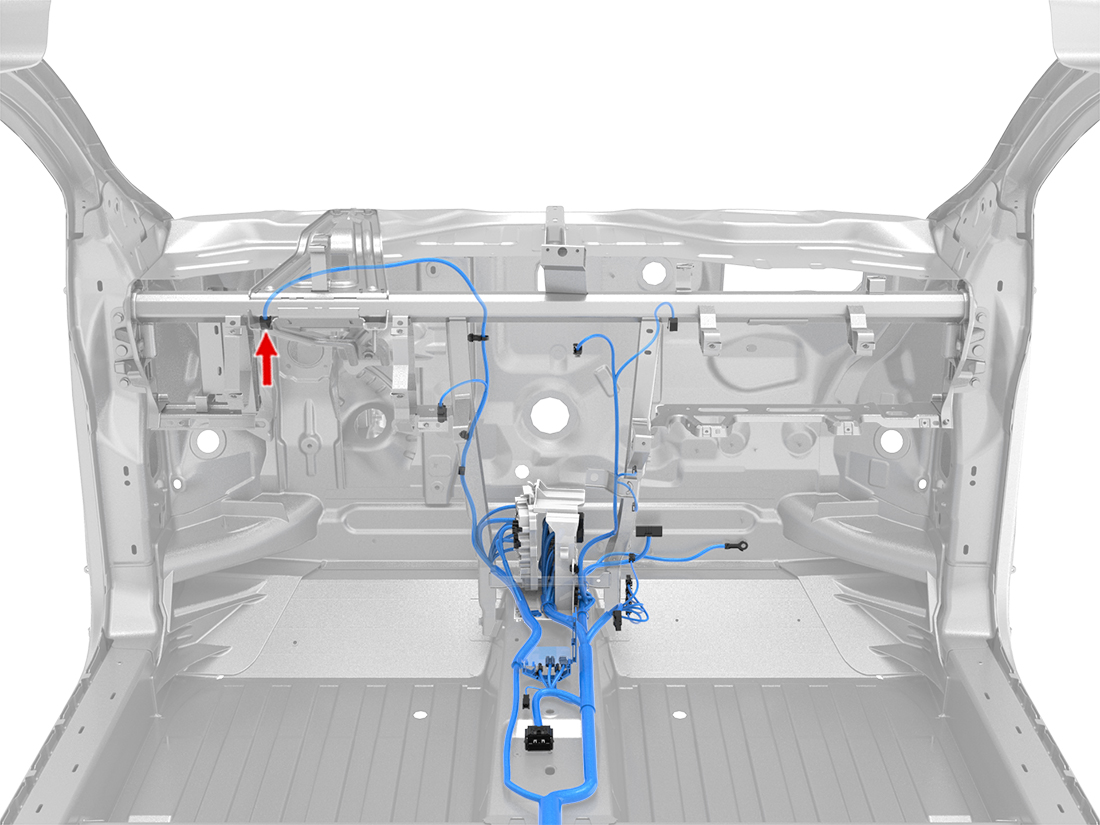

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1YAZAKI7116-4270-022.8x0.8FBN0.35X0293
2YAZAKI7116-4270-022.8x0.8FBN0.35X0292
3YAZAKI7116-4270-022.8x0.8FBN/WH0.35X0287
4YAZAKI7116-4270-022.8x0.8FWH0.35X7015
