X176 - x-lhd-sop8

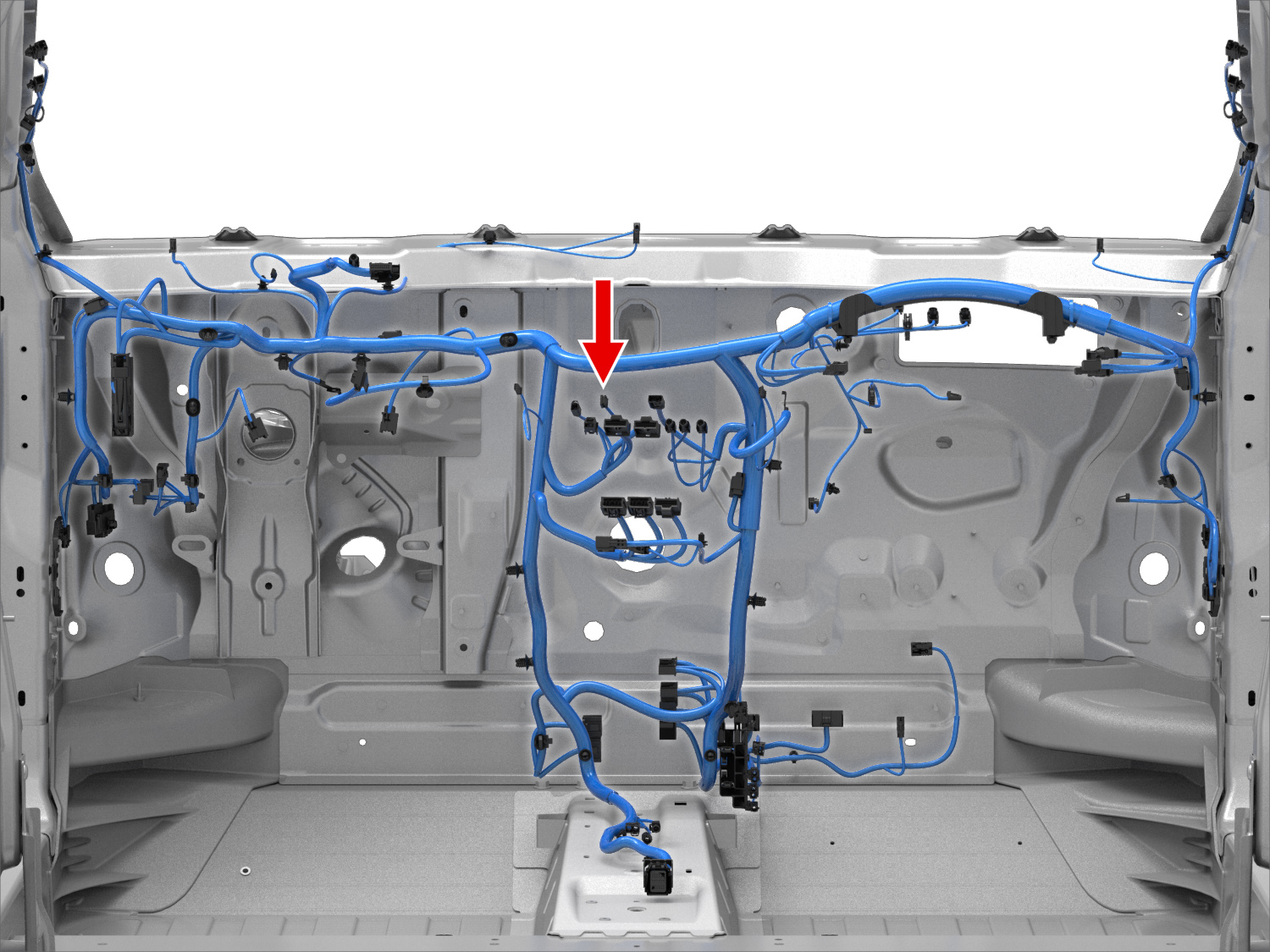

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | MOLEX | 560023-0448 | 0.50x0.4F | GY/WH | 0.35 | X563 | 7 | ||
| 3 | MOLEX | 560023-0448 | 0.50x0.4F | GY | 0.35 | X563 | 9 | ||
| 4 | |||||||||
