X186 - x-lhd-sop8

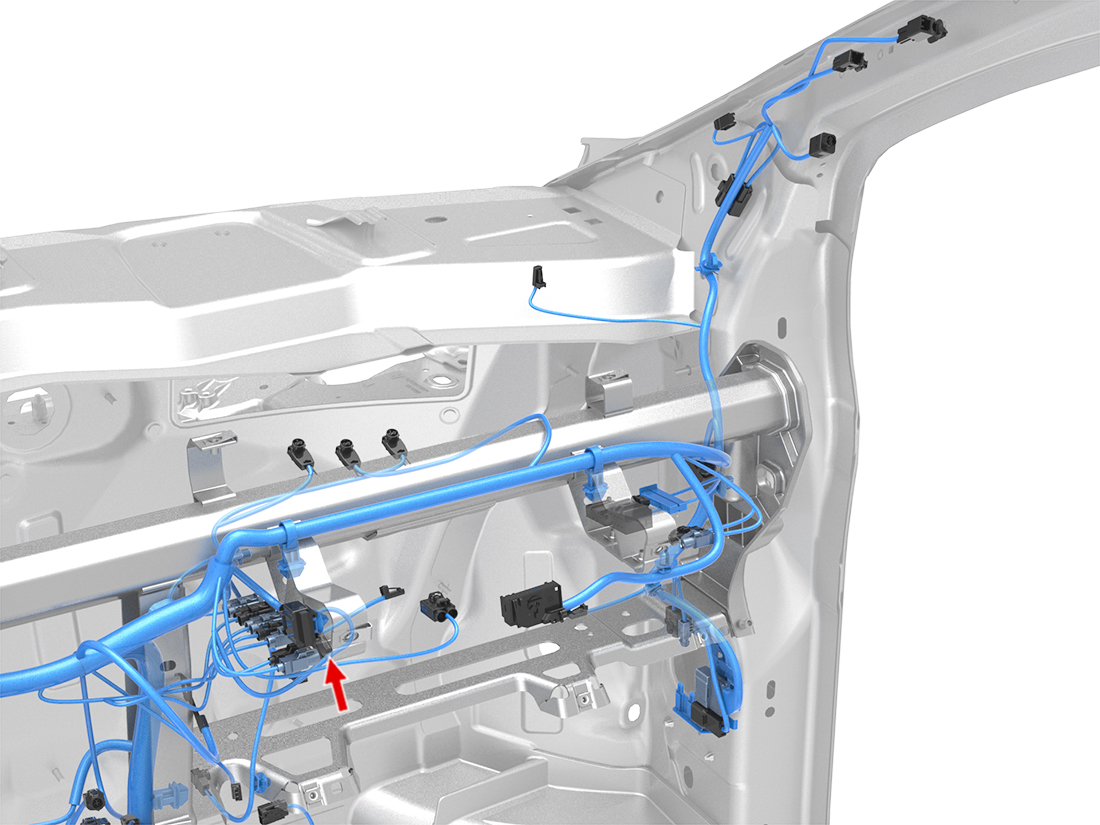

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1-175195-5 | 1.5x0.6F | BK | 0.50 | GND_IP_R | 1 | ||
| 2 | AMP | 1-175195-5 | 1.5x0.6F | GY | 0.50 | X060 | 4 |
