X220 - x-lhd-sop8

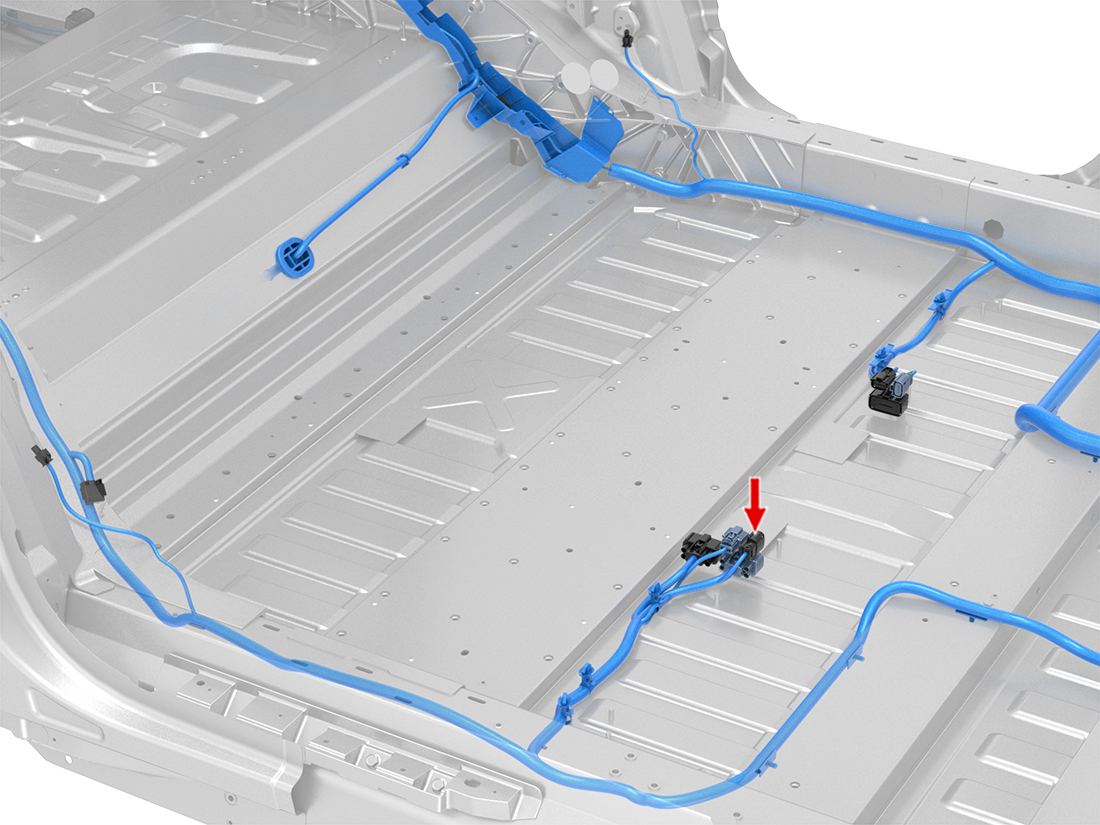

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33001-3005 | 1.5x0.8F | OG | 0.35 | TESLA | MAT-120-240 | X201 | 49 |
| 2 | MOLEX | 33001-3005 | 1.5x0.8F | GY | 0.35 | TESLA | MAT-120-240 | X201 | 50 |
| 3 | MOLEX | 33012-3003 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-240 | GND_C2 | 1 |
| 4 | |||||||||
