X262 - x-lhd-sop8

Tesla Part Number

1015286-00-A

Connector

MOLEX 33472-0601

Color

BK

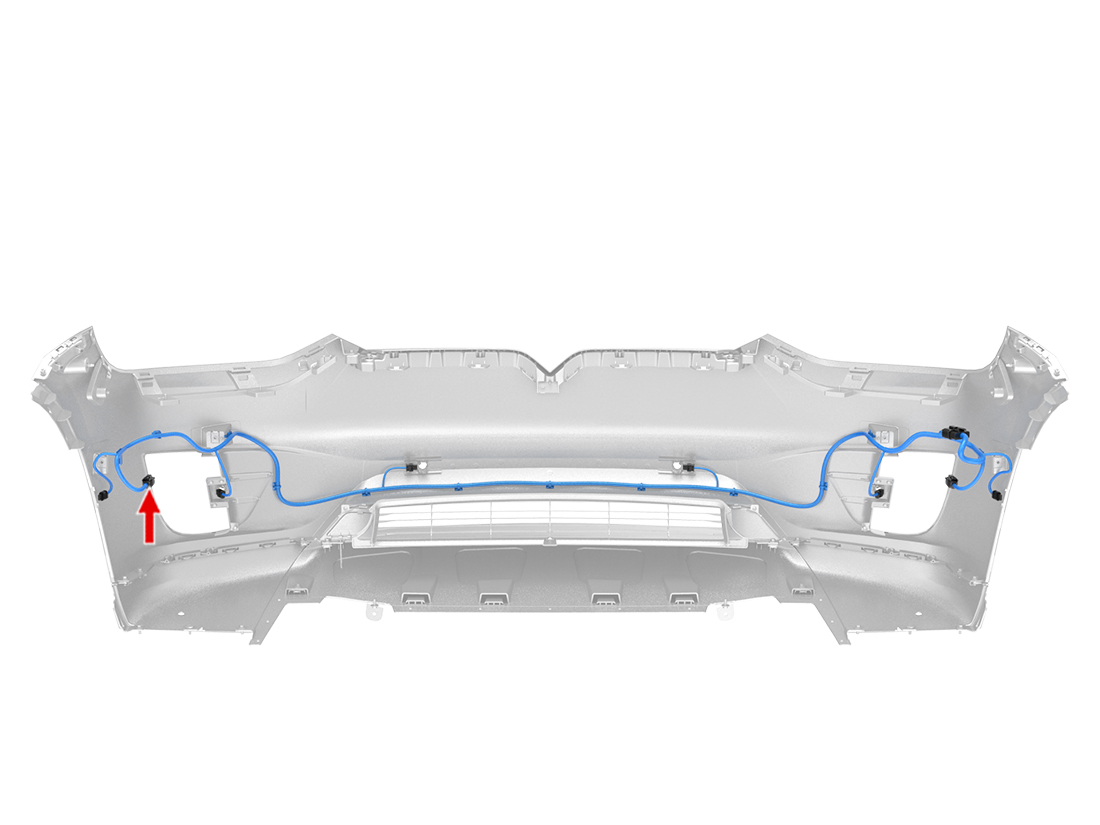

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3003	1.5x0.8F	GN/WH	0.50	TESLA	MAT-120-240	X901F	13
2	MOLEX	33012-3003	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X901F	15
3	MOLEX	33012-3003	1.5x0.8F	BK	0.50	TESLA	MAT-120-240
4	MOLEX	33012-3003	1.5x0.8F	BU	0.50	TESLA	MAT-120-240	X901F	20
5	MOLEX	33012-3003	1.5x0.8F	BN	0.50	TESLA	MAT-120-240	X901F	14
6	MOLEX	33012-3003	1.5x0.8F	BK	0.50	TESLA	MAT-120-240
