X270 - x-lhd-sop8

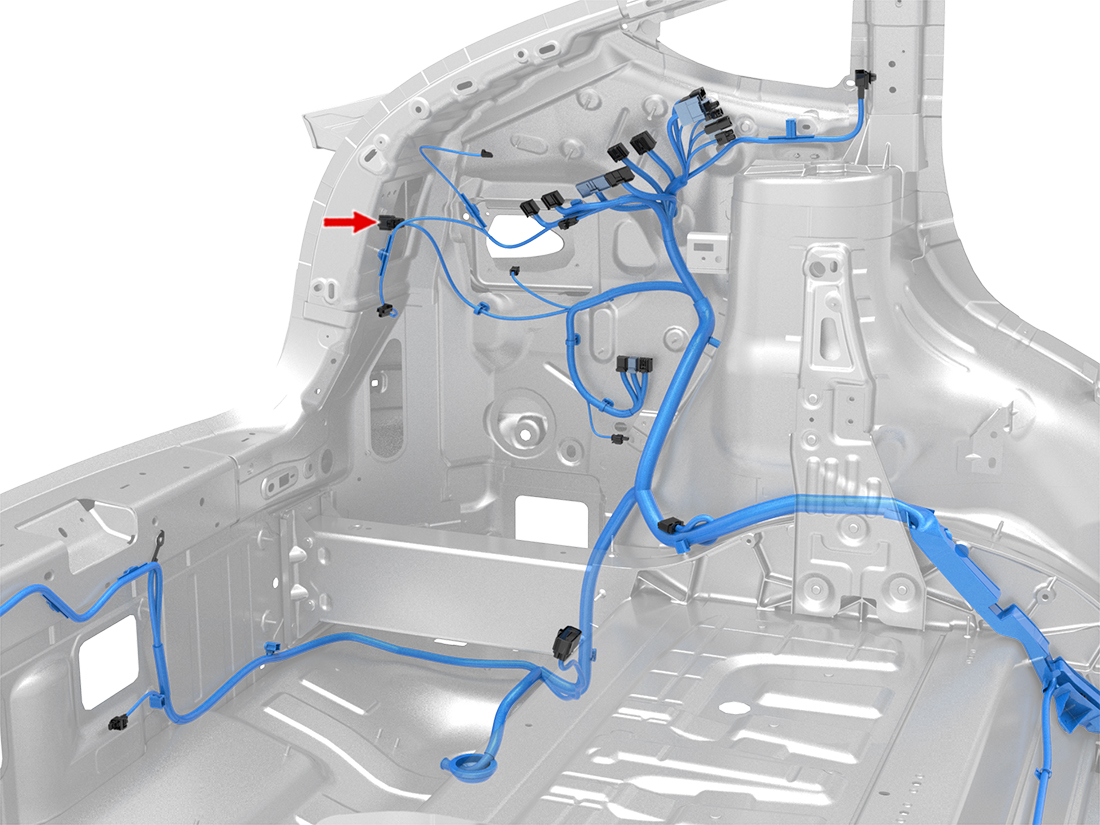

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | MOLEX | 33012-3003 | 1.5x0.8F | GY | 0.50 | TESLA | MAT-120-240 | X070 | 11 |
| 3 | MOLEX | 33012-3003 | 1.5x0.8F | VT | 0.50 | TESLA | MAT-120-240 | X070 | 8 |
| 4 | MOLEX | 33012-3003 | 1.5x0.8F | BN | 0.50 | TESLA | MAT-120-240 | X070 | 14 |
| 5 | MOLEX | 33012-3003 | 1.5x0.8F | GN | 0.50 | TESLA | MAT-120-240 | X070 | 9 |
| 6 | MOLEX | 33012-3003 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-240 | GND_LR | 1 |
