X271 - x-lhd-sop8

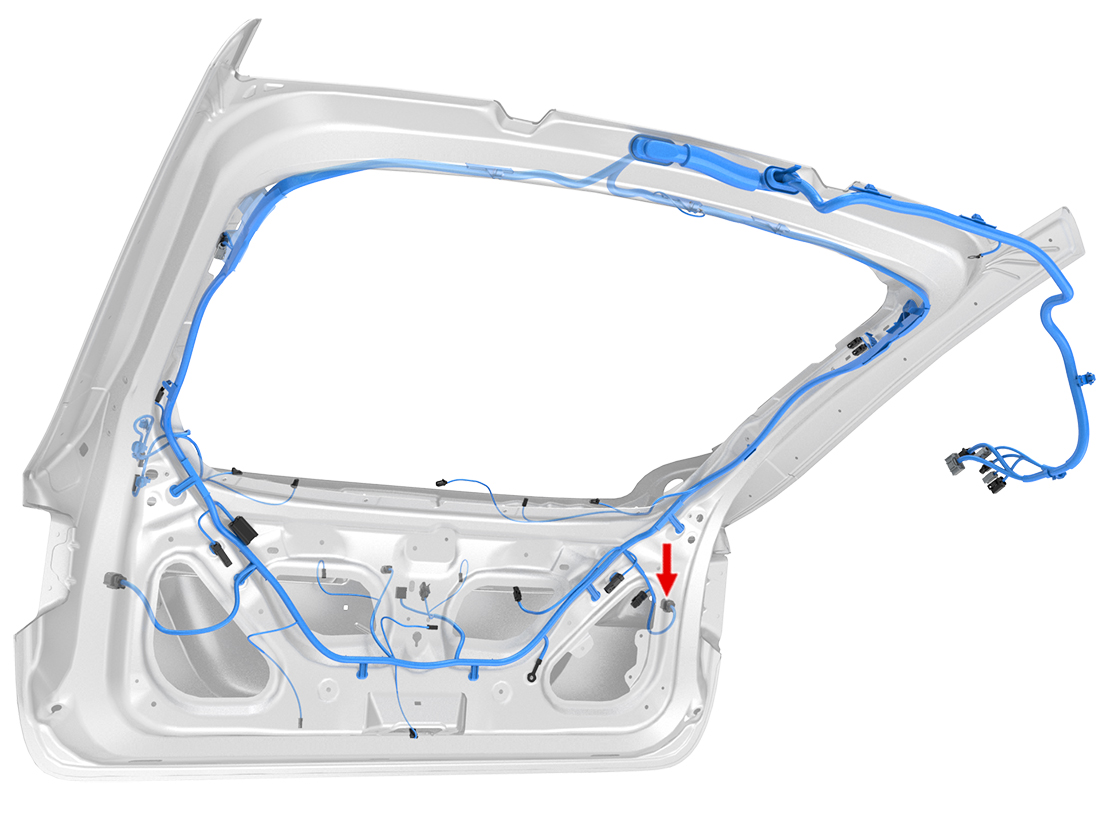

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | DELPHI | 35031567 | 1.5x0.8F | VT | 0.50 | TESLA | MAT-120-240 | X955F | 5 |
| 3 | DELPHI | 35031567 | 1.5x0.8F | RD | 0.50 | TESLA | MAT-120-240 | X955F | 4 |
| 4 | DELPHI | 35031567 | 1.5x0.8F | WH | 0.50 | TESLA | MAT-120-240 | X955F | 3 |
| 5 | |||||||||
| 6 | DELPHI | 35031567 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-240 | GND_LG | 1 |
