X274 - x-lhd-sop8

Tesla Part Number
1049951-00-A
Connector
JST 02T-JWPF-VSLE-S
Color
WH

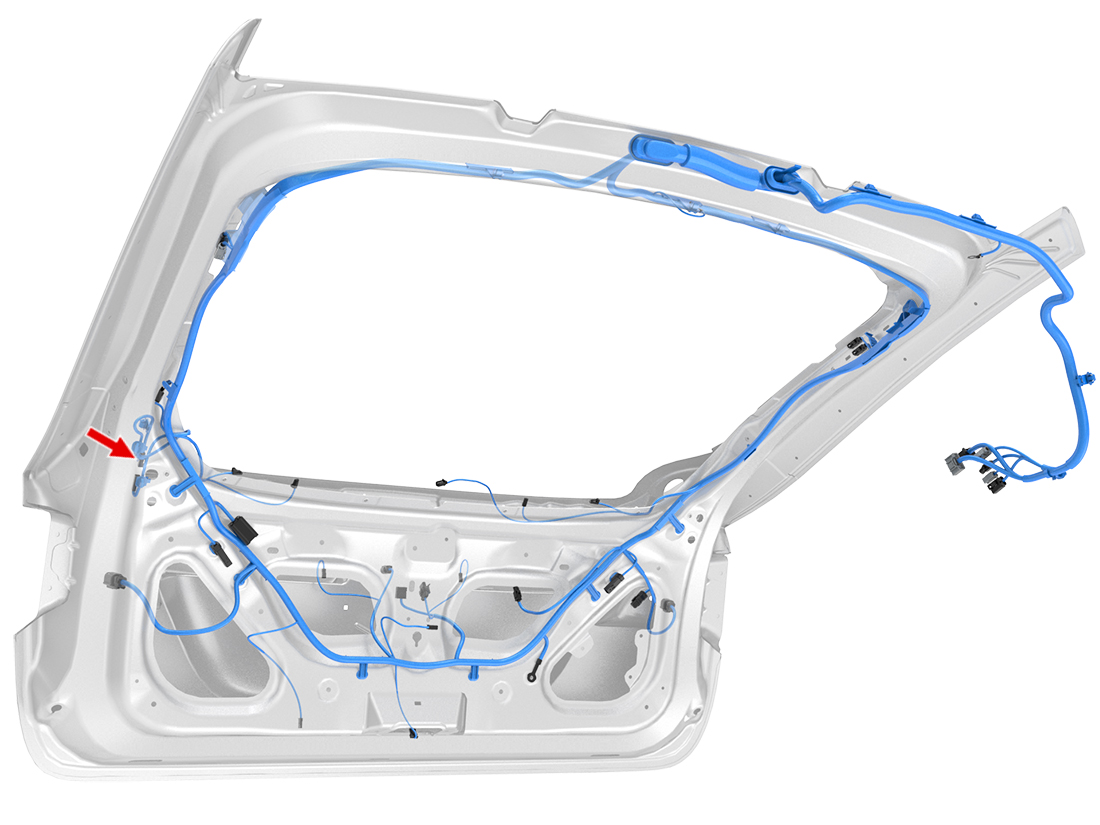

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1JSTSWPT-001T-P0250.64x0.64NBN0.35TESLAMAT-120-170X955F7
2JSTSWPT-001T-P0250.64x0.64NBK0.35TESLAMAT-120-170GND_LG1
