X300A - x-lhd-sop8

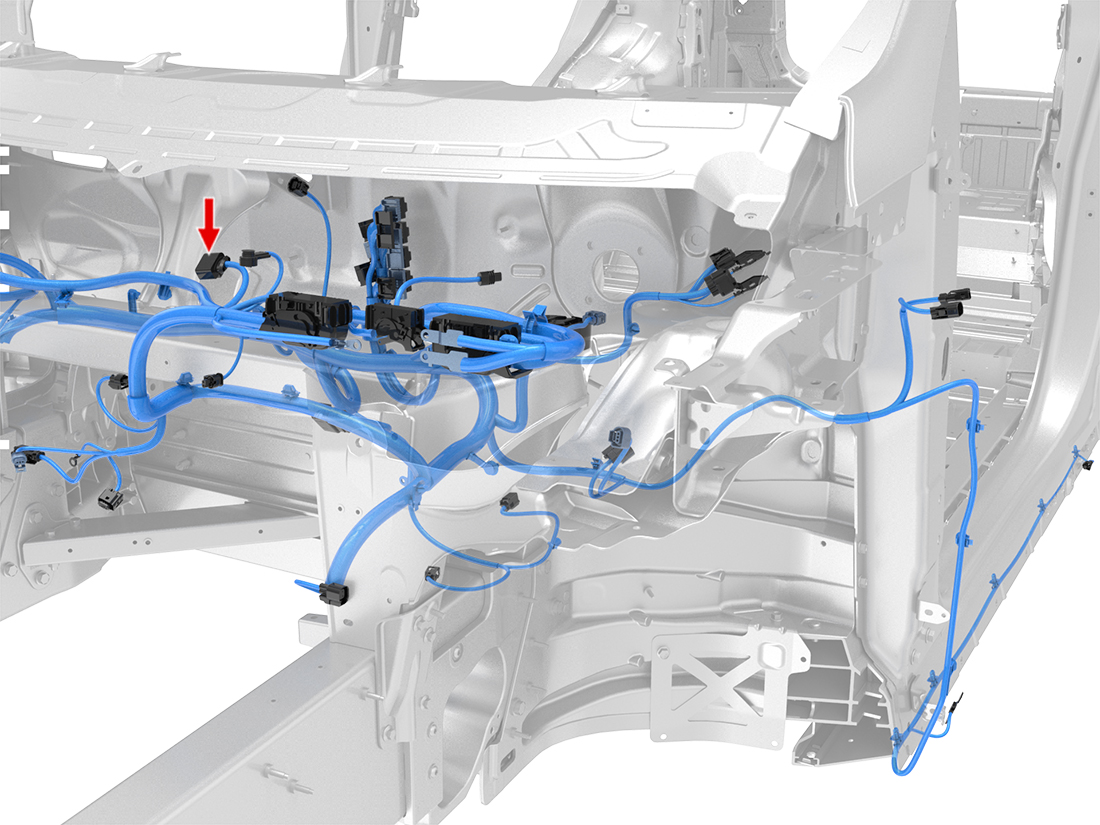

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 964273-2 | 2.8x0.8FS | RD/BU | 2.00 | AMP | 963293-1 | X001 | 22 |
| 2 | AMP | 964273-2 | 2.8x0.8FS | BK | 2.00 | AMP | 963293-1 | GND_FR_RH2 | 1 |
| 3 | AMP | 964282-2 | 2.8x0.8FS | VT/WH | 0.50 | AMP | 963294-1 | X913F | 16 |
| 4 | AMP | 964282-2 | 2.8x0.8FS | GN | 0.50 | AMP | 963294-1 | X914M | 13 |
