X303 - x-lhd-sop8

Tesla Part Number
1015107-00-A
Connector
AMP 9-1718346-1
Color
WB

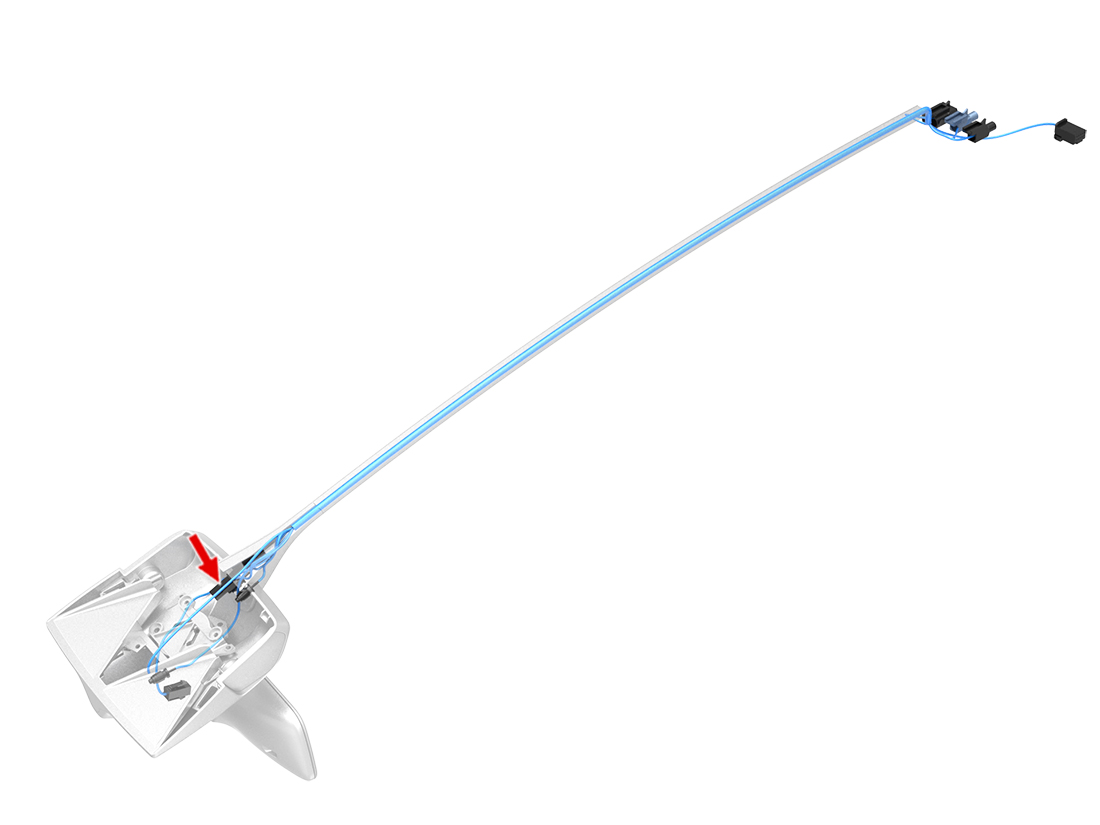

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP1355717-10.63x0.63FRD0.13X980F4
2AMP1355717-10.63x0.63FGY0.13X980F3
3AMP1355717-10.63x0.63FGN0.13X980F2
