X353 - x-lhd-sop8

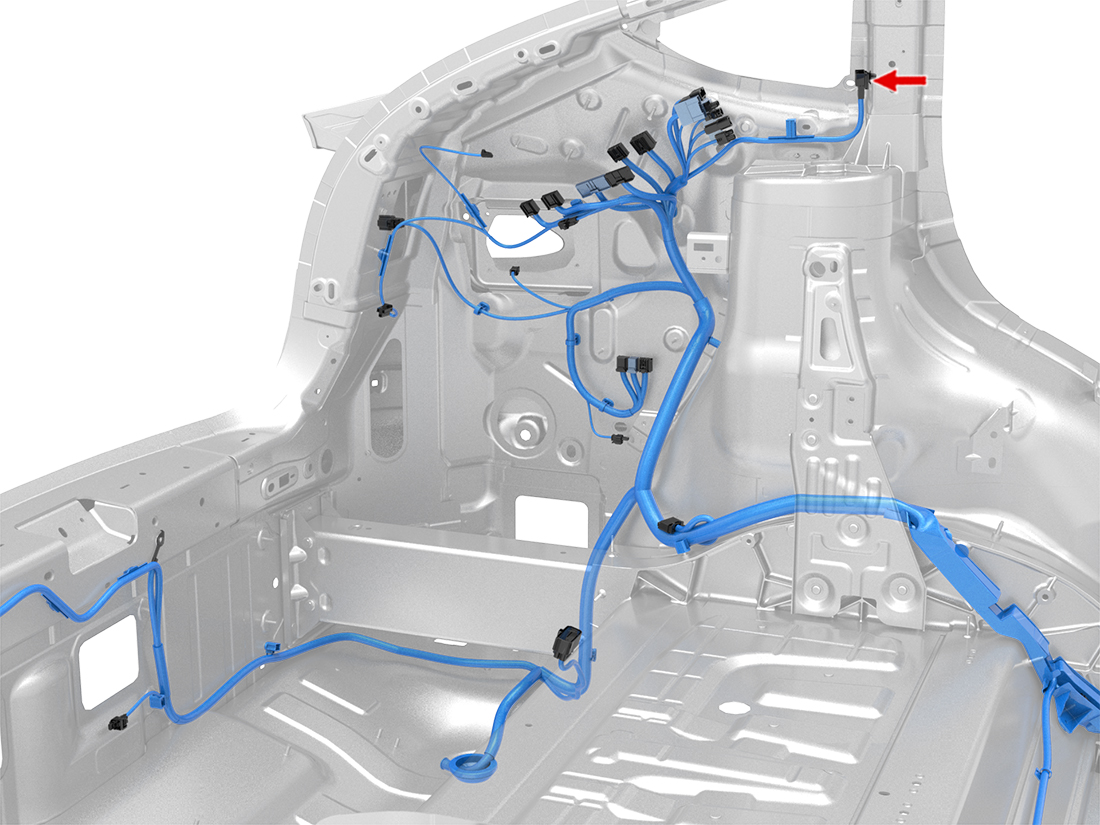

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4925 | 1.5x0.6M | BN/WH | 0.35 | X071 | 14 | ||
| 2 | SUMITOMO | 8230-4925 | 1.5x0.6M | GN | 0.35 | X071 | 21 | ||
| 3 | SUMITOMO | 8230-4925 | 1.5x0.6M | GY | 0.35 | X071 | 20 | ||
| 4 | SUMITOMO | 8230-4925 | 1.5x0.6M | VT/WH | 0.35 | X071 | 37 | ||
| 5 | SUMITOMO | 8230-4924 | 1.5x0.6M | RD/WH | 1.00 | X073 | 4 | ||
| 6 | |||||||||
| 7 | |||||||||
| 8 | SUMITOMO | 8230-4924 | 1.5x0.6M | BK/WH | 1.00 | X073 | 3 | ||
