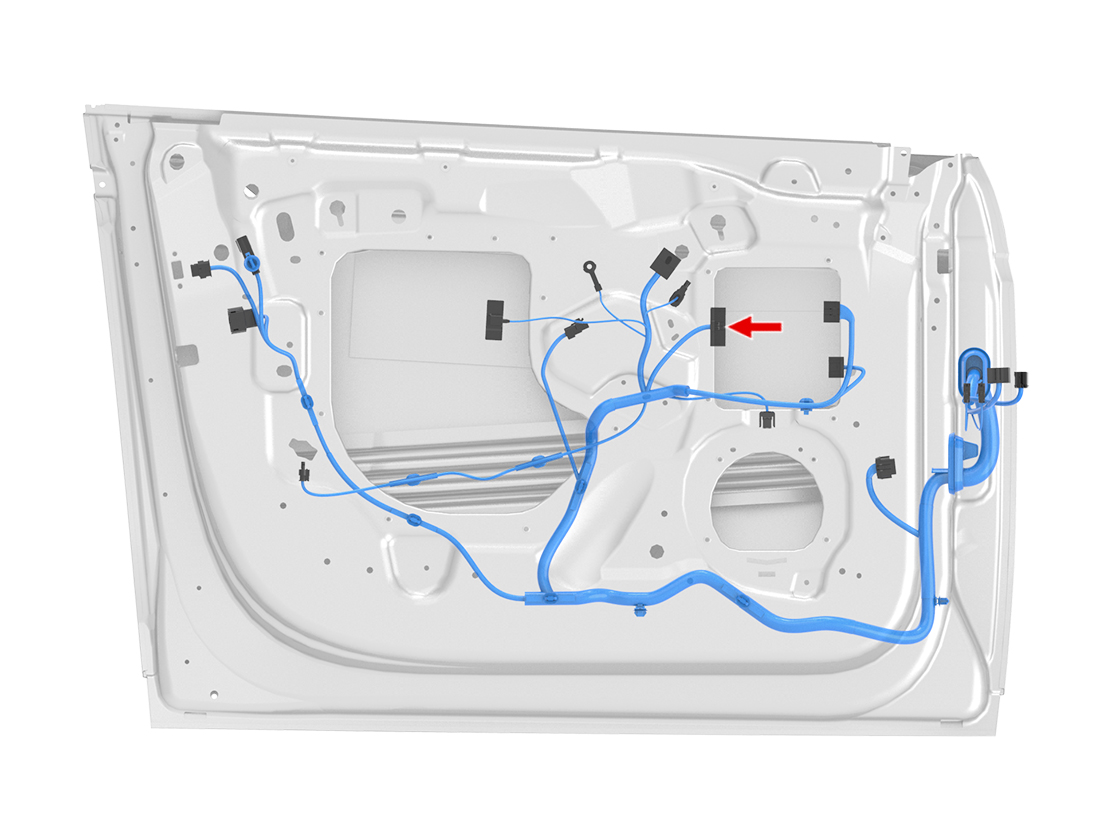

X361 - x-lhd-sop8

Tesla Part Number

1043175-00-A

Connector

SUMITOMO 6098-4831

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X373	5
2	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35	X377	1
3	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X377	2
4	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35	X374	17
5
6
7	SUMITOMO	8100-3624	0.64x0.64F	BN	0.35	X374	7
8	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X374	18
9	SUMITOMO	8100-3624	0.64x0.64F	WH	0.35	X374	6
10	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50	X368	1
11	SUMITOMO	8100-3624	0.64x0.64F	BU/WH	0.35	X385	2
12
13	SUMITOMO	8100-3624	0.64x0.64F	BK	0.35	X920F	9
14	SUMITOMO	8100-3624	0.64x0.64F	BK	0.35	X920F	13
15	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50	X373	2
16
17
18
19	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X368	2
20
21
22	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50	X378	2
23	SUMITOMO	8100-3625	0.64x0.64F	RD/WH	0.50	X378	1
24	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35	X374	20
25	SUMITOMO	8100-3624	0.64x0.64F	BK/WH	0.35	X374	9
26	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X374	10
27	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50	X368	3
28	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50	X373	6
29	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50	X373	1
30	SUMITOMO	8100-3624	0.64x0.64F	BN	0.35	X920F	15
31	SUMITOMO	8100-3624	0.64x0.64F	BN/WH	0.35	X920F	6
32	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X378	3
33	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35	X376	1
34	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35	X376	2
35	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35	X385	3
36
37	SUMITOMO	8100-3624	0.64x0.64F	GY/WH	0.35	X386	1
38	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35	X920F	16
39	SUMITOMO	8100-3624	0.64x0.64F	WH	0.35	X920F	8
40	SUMITOMO	8100-3624	0.64x0.64F	GY/WH	0.35	X374	4
