X362 - x-lhd-sop8

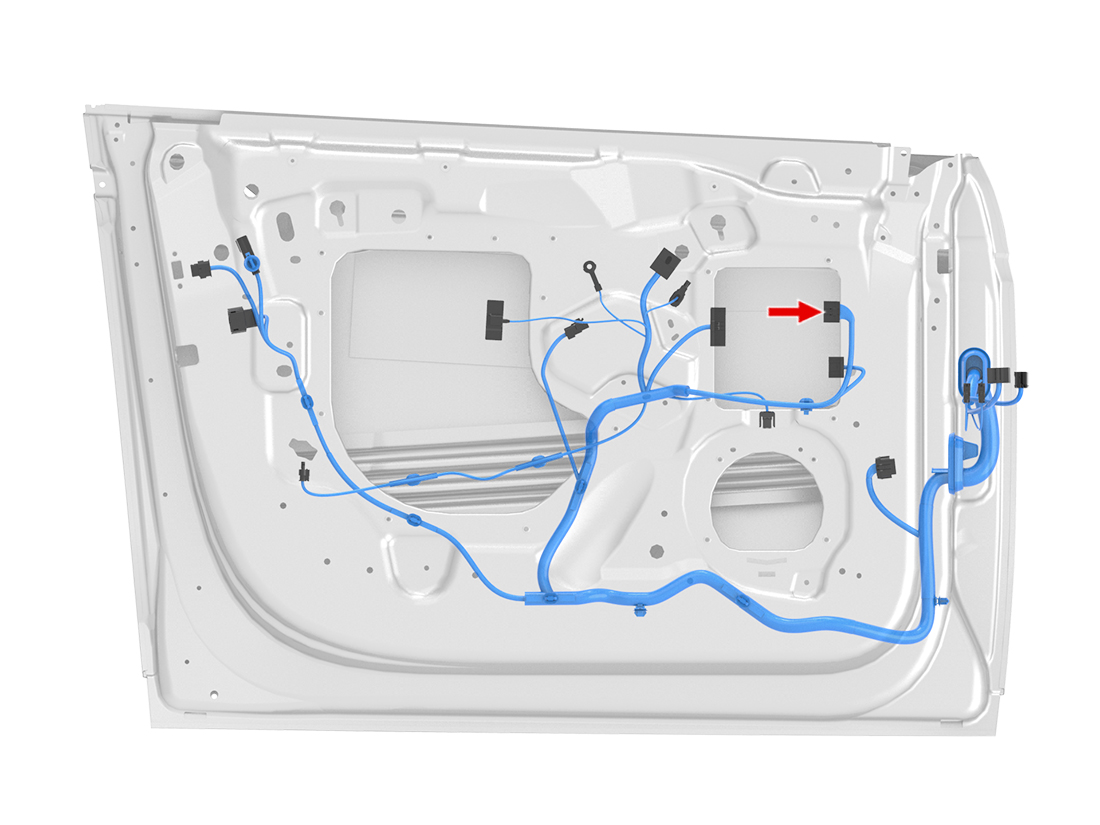

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-0782 | 4.8x0.8F | RD/VT | 2.00 | X921F | 1 | ||
| 2 | SUMITOMO | 8100-0606 | 4.8x0.8F | BN | 1.50 | X385 | 1 | ||
| 3 | |||||||||
| 4 | SUMITOMO | 8100-0606 | 4.8x0.8F | GN | 1.50 | X385 | 5 | ||
| 5 | SUMITOMO | 8100-0782 | 4.8x0.8F | BK | 2.00 | X921F | 2 | ||
