X373 - x-lhd-sop8

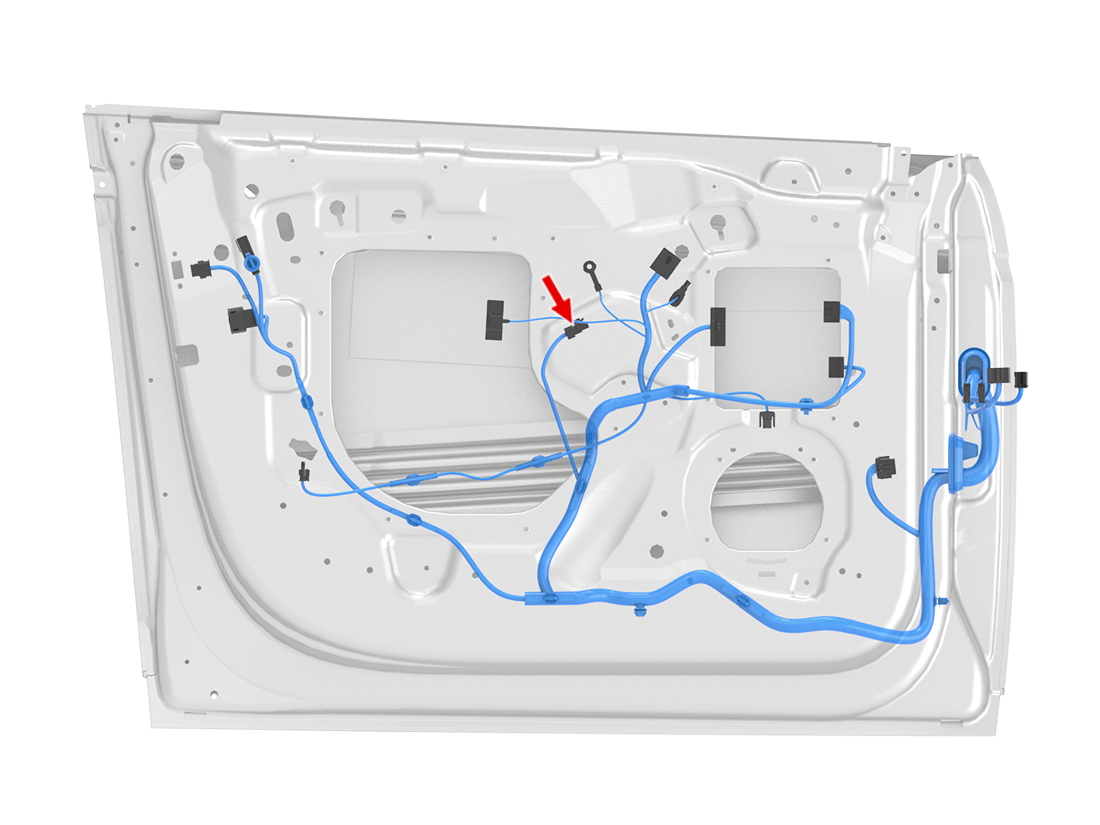

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FCI | 211CC2S1160P | 1.5x0.8F | BU | 0.50 | TESLA | MAT-140-280 | X361 | 29 |
| 2 | FCI | 211CC2S1160P | 1.5x0.8F | VT | 0.50 | TESLA | MAT-140-280 | X361 | 15 |
| 3 | FCI | 211CC3S2120 | 2.8x0.8F | GY | 1.50 | TESLA | MAT-160-345 | X920F | 1 |
| 4 | FCI | 211CC3S2120 | 2.8x0.8F | BK | 1.50 | TESLA | MAT-160-345 | X920F | 11 |
| 5 | FCI | 211CC2S1160P | 1.5x0.8F | GN | 0.50 | TESLA | MAT-140-280 | X361 | 1 |
| 6 | FCI | 211CC2S1160P | 1.5x0.8F | WH | 0.50 | TESLA | MAT-140-280 | X361 | 28 |
