X374 - x-lhd-sop8

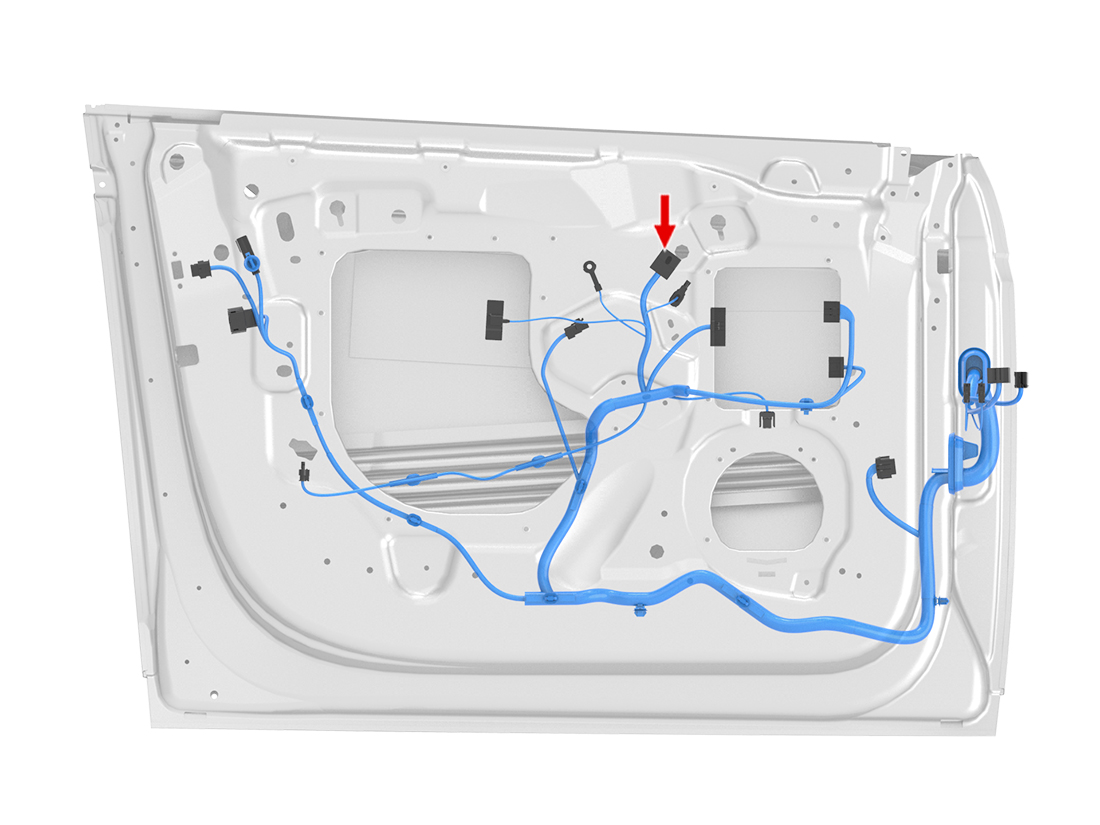

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-3622 | 0.64x0.64M | VT | 0.35 | X363 | 6 | ||
| 2 | SUMITOMO | 8100-3622 | 0.64x0.64M | RD | 0.35 | X363 | 5 | ||
| 3 | SUMITOMO | 8100-3622 | 0.64x0.64M | BU/WH | 0.35 | X363 | 4 | ||
| 4 | SUMITOMO | 8100-3622 | 0.64x0.64M | GY/WH | 0.35 | X361 | 40 | ||
| 5 | |||||||||
| 6 | SUMITOMO | 8100-3622 | 0.64x0.64M | WH | 0.35 | X361 | 9 | ||
| 7 | SUMITOMO | 8100-3622 | 0.64x0.64M | BN | 0.35 | X361 | 7 | ||
| 8 | |||||||||
| 9 | SUMITOMO | 8100-3622 | 0.64x0.64M | BK/WH | 0.35 | X361 | 25 | ||
| 10 | SUMITOMO | 8100-3622 | 0.64x0.64M | BU | 0.35 | X361 | 26 | ||
| 11 | |||||||||
| 12 | SUMITOMO | 8100-3622 | 0.64x0.64M | BK | 0.35 | GND_A_LH_2 | 1 | ||
| 13 | SUMITOMO | 8100-3622 | 0.64x0.64M | BK | 0.35 | GND_A_LH_2 | 1 | ||
| 14 | SUMITOMO | 8100-3622 | 0.64x0.64M | GN/WH | 0.35 | X363 | 3 | ||
| 15 | SUMITOMO | 8100-3622 | 0.64x0.64M | BN/WH | 0.35 | X363 | 12 | ||
| 16 | |||||||||
| 17 | SUMITOMO | 8100-3622 | 0.64x0.64M | VT | 0.35 | X361 | 4 | ||
| 18 | SUMITOMO | 8100-3622 | 0.64x0.64M | GN | 0.35 | X361 | 8 | ||
| 19 | |||||||||
| 20 | SUMITOMO | 8100-3622 | 0.64x0.64M | GY | 0.35 | X361 | 24 | ||
| 21 | |||||||||
| 22 | |||||||||
