X378 - x-lhd-sop8

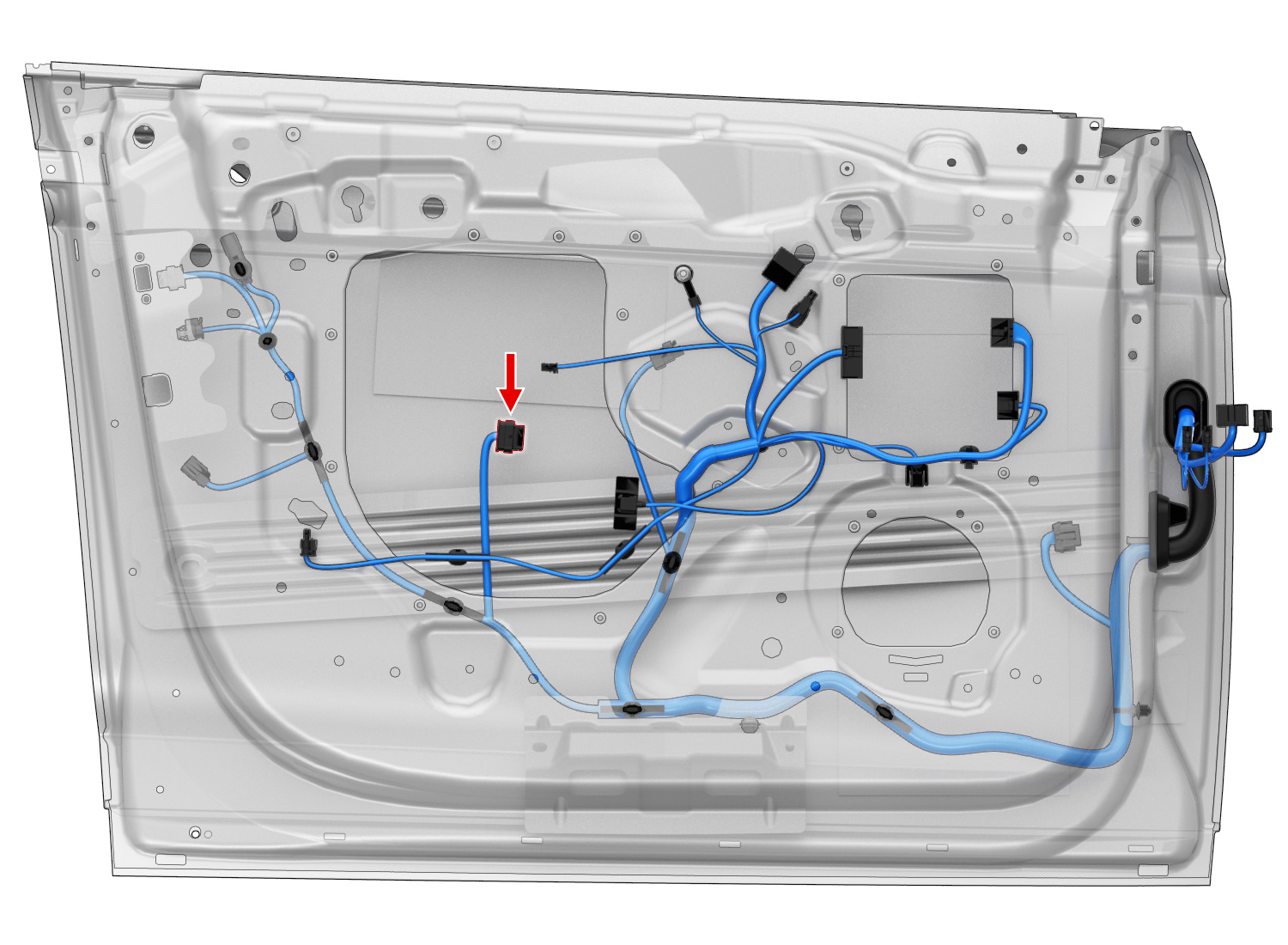

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452668-1 | 1.2x0.6FS | RD/WH | 0.50 | AMP | 967067-1 | X361 | 23 |
| 2 | AMP | 7-1452668-1 | 1.2x0.6FS | BN | 0.50 | AMP | 967067-1 | X361 | 22 |
| 3 | AMP | 7-1452665-1 | 1.2x0.6FS | GN | 0.35 | X361 | 32 | ||
| 4 | AMP | 7-1452665-1 | 1.2x0.6FS | BK | 0.35 | GND_A_LH_2 | 1 | ||
| 5 | |||||||||
| 6 | |||||||||
