X393 - x-lhd-sop8

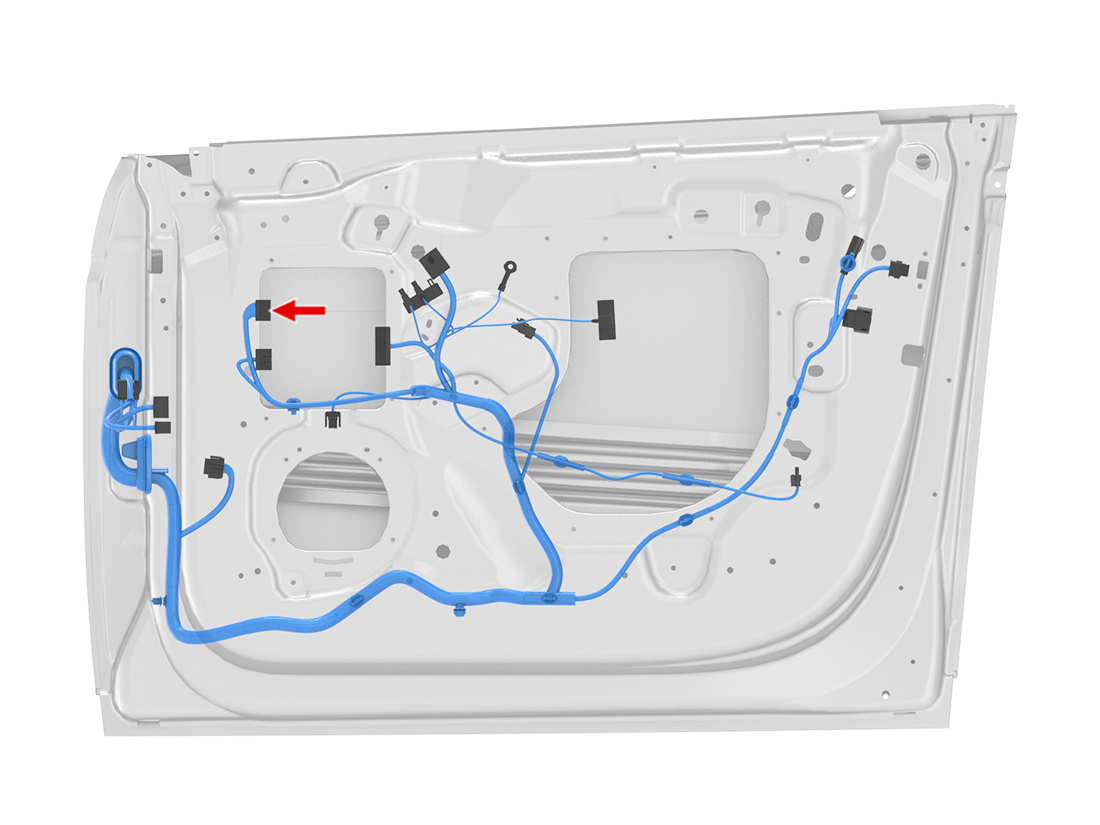

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.35 | X416 | 3 | ||
| 2 | SUMITOMO | 8240-0215 | 1.5x0.64F | GY | 0.35 | X416 | 4 | ||
| 3 | SUMITOMO | 8240-0215 | 1.5x0.64F | GN/WH | 0.35 | X404 | 14 | ||
| 4 | SUMITOMO | 8240-0215 | 1.5x0.64F | BU/WH | 0.35 | X404 | 3 | ||
| 5 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.35 | X404 | 2 | ||
| 6 | SUMITOMO | 8240-0215 | 1.5x0.64F | VT | 0.35 | X404 | 1 | ||
| 7 | |||||||||
| 8 | SUMITOMO | 8240-0213 | 1.5x0.64F | BK/WH | 0.75 | GND_A_RH_2 | 1 | ||
| 9 | SUMITOMO | 8240-0215 | 1.5x0.64F | BU | 0.50 | X415 | 8 | ||
| 10 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.50 | X415 | 4 | ||
| 11 | SUMITOMO | 8240-0215 | 1.5x0.64F | VT/WH | 0.35 | ||||
| 12 | SUMITOMO | 8240-0215 | 1.5x0.64F | BN/WH | 0.35 | X404 | 15 | ||
| 13 | SUMITOMO | 8240-0215 | 1.5x0.64F | GY | 0.35 | X415 | 6 | ||
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
