X434 - x-lhd-sop8

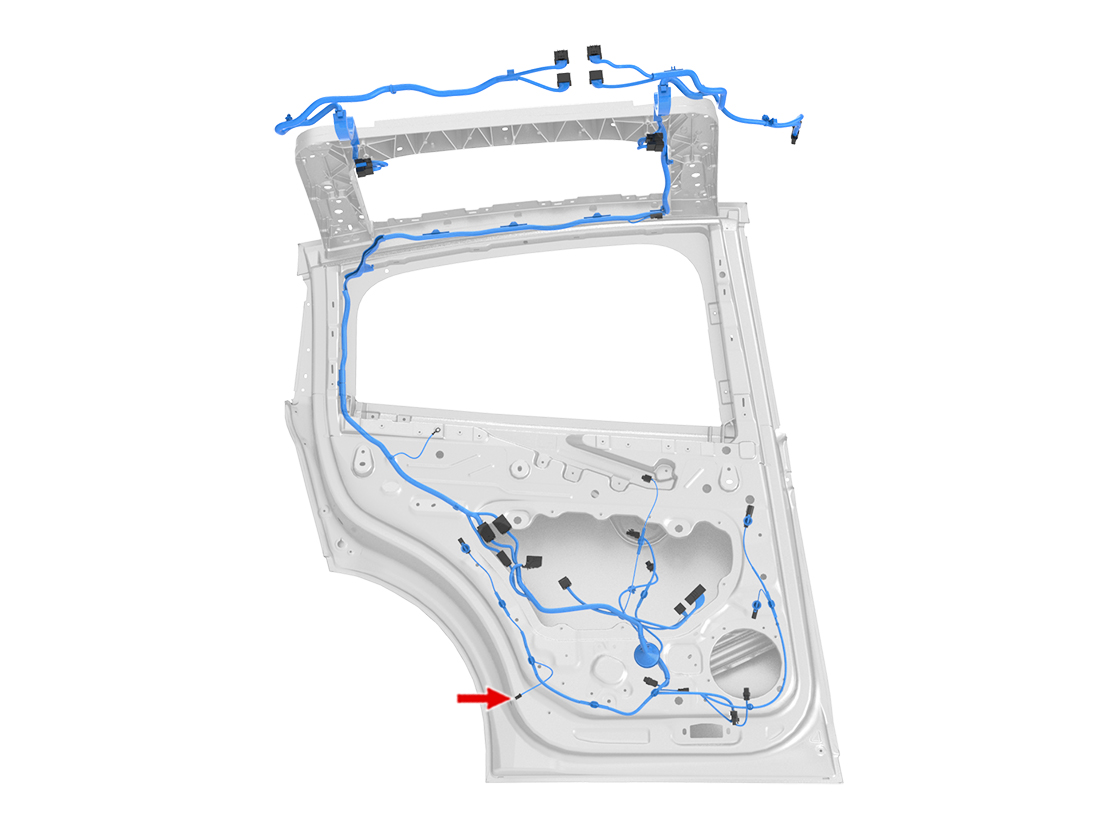

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | JST | SWPR-001T-P025 | 0.64x0.64F | RD/BU | 0.35 | TESLA | MAT-120-170 | X421 | 32 |
| 2 | JST | SWPR-001T-P025 | 0.64x0.64F | BK | 0.35 | TESLA | MAT-120-170 | GND_JC_LRD_F | 8 |
| 3 | JST | SWPR-001T-P025 | 0.64x0.64F | GN | 0.35 | TESLA | MAT-120-170 | X421 | 3 |
