X455 - x-lhd-sop8

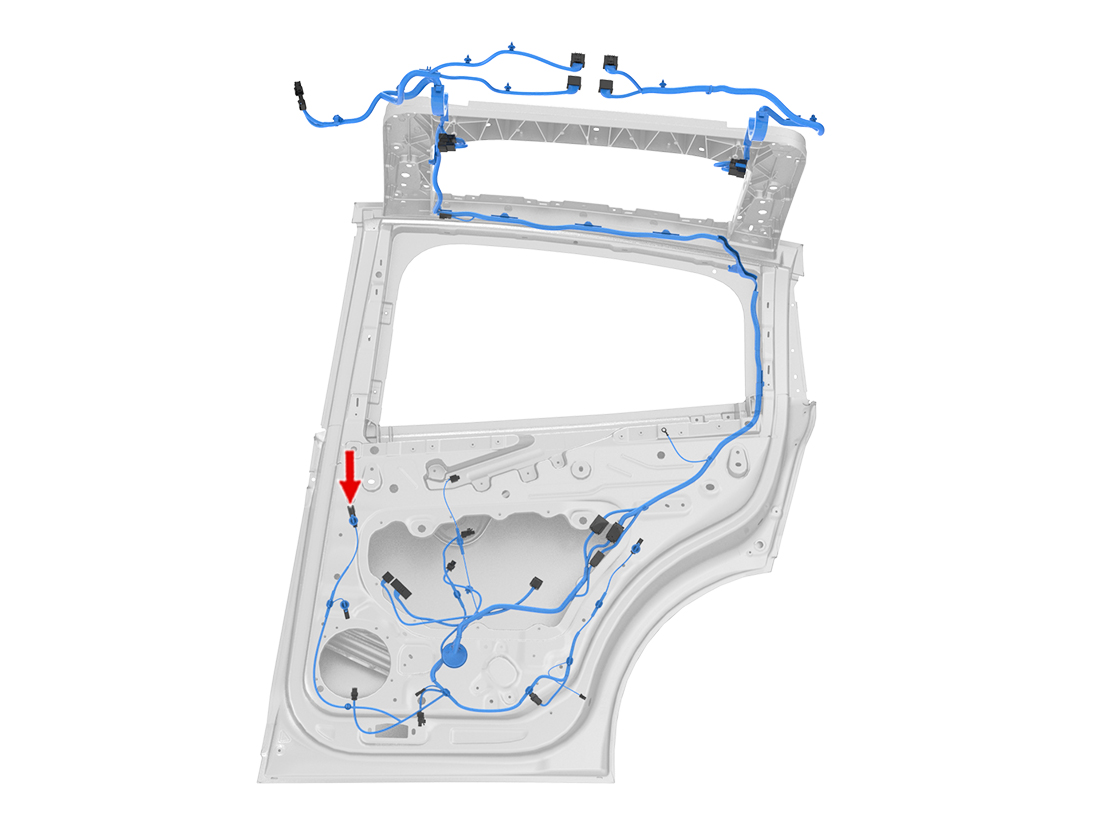

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33000-0004 | 1.5x0.8M | BN/WH | 0.50 | TESLA | MAT-120-240 | X451 | 30 |
| 2 | MOLEX | 33000-0004 | 1.5x0.8M | GN | 0.50 | TESLA | MAT-120-240 | X451 | 35 |
| 3 | MOLEX | 33000-0004 | 1.5x0.8M | GN/WH | 0.50 | TESLA | MAT-120-240 | X451 | 25 |
| 4 | |||||||||
