X469 - x-lhd-sop8

Tesla Part Number
1020325-00-A
Connector
YAZAKI 7282-6075-30
Color
BK

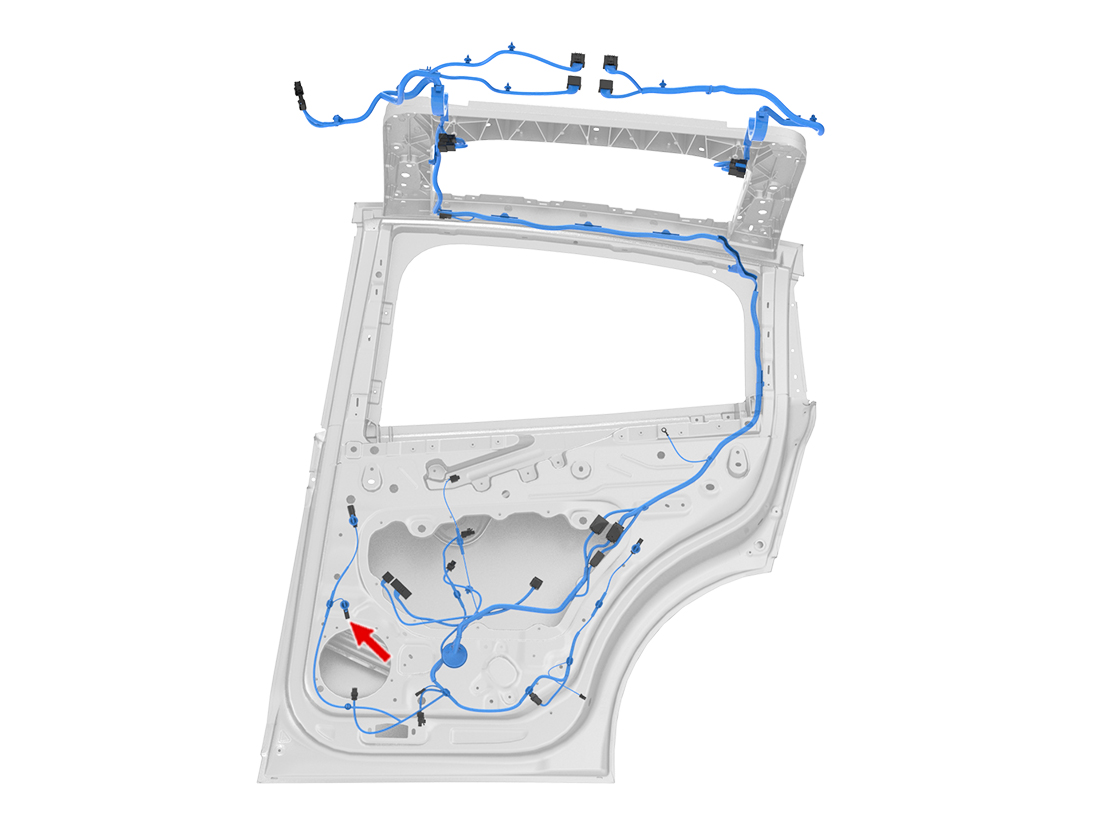

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1YAZAKI7114-4721-020.64x0.64MBU0.50TESLAMAT-140-220X974F11
2YAZAKI7114-4721-020.64x0.64MBN0.50TESLAMAT-140-220X974F9
