X506 - x-lhd-sop8

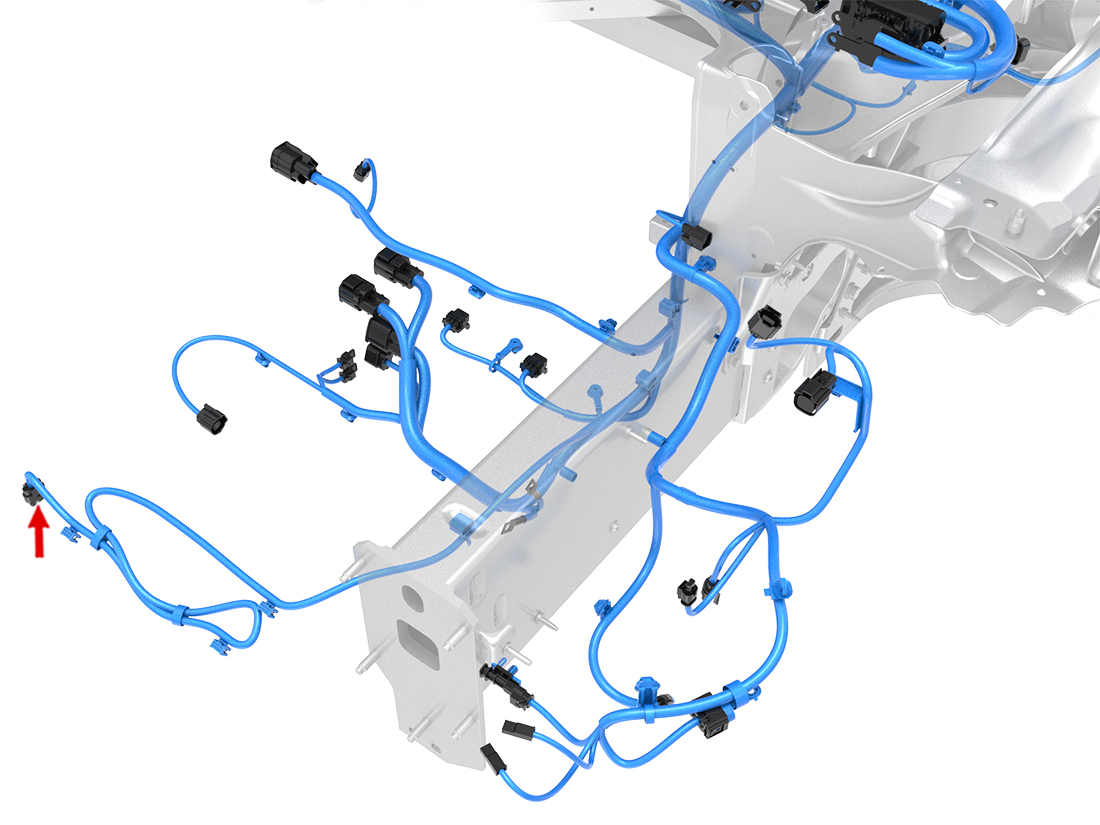

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1670146-1 | 1.2x0.6FS | RD/BU | 0.50 | AMP | 967067-1 | X003 | 12 |
| 2 | AMP | 1670146-1 | 1.2x0.6FS | GN/WH | 0.50 | AMP | 967067-2 | X752 | 1 |
| 3 | |||||||||
| 4 | AMP | 1670146-1 | 1.2x0.6FS | BK | 0.50 | AMP | 967067-2 | GND_FR_LH1 | 1 |
