X538 - x-lhd-sop8

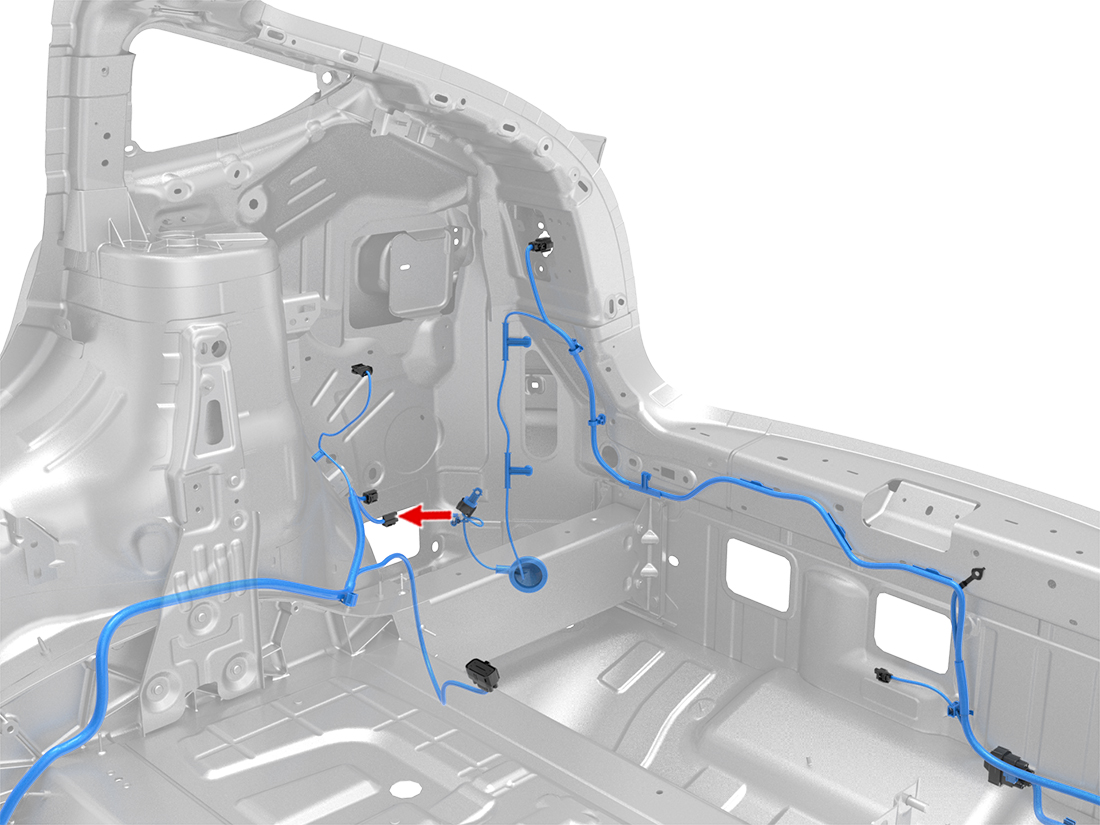

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 170032-5 | 6.3x0.8F | RD/GN | 2.00 | X912M | 10 | ||
| 2 | AMP | 170032-5 | 6.3x0.8F | BK | 2.00 | GND_C2 | 1 |
