X597 - x-lhd-sop8

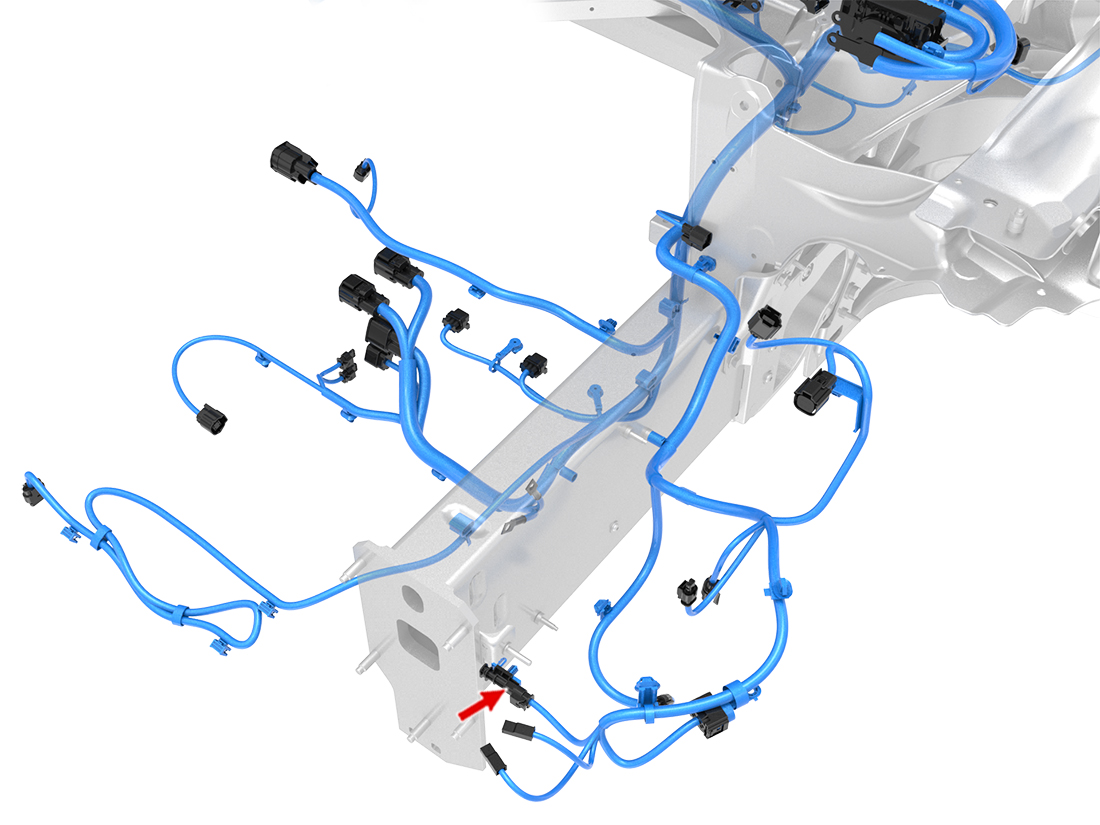

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452668-1 | 1.2x0.6FS | RD/BK | 0.75 | AMP | 967067-1 | X915M | 11 |
| 2 | AMP | 7-1452668-1 | 1.2x0.6FS | RD | 0.75 | AMP | 967067-1 | X915M | 18 |
