X605 - x-lhd-sop8

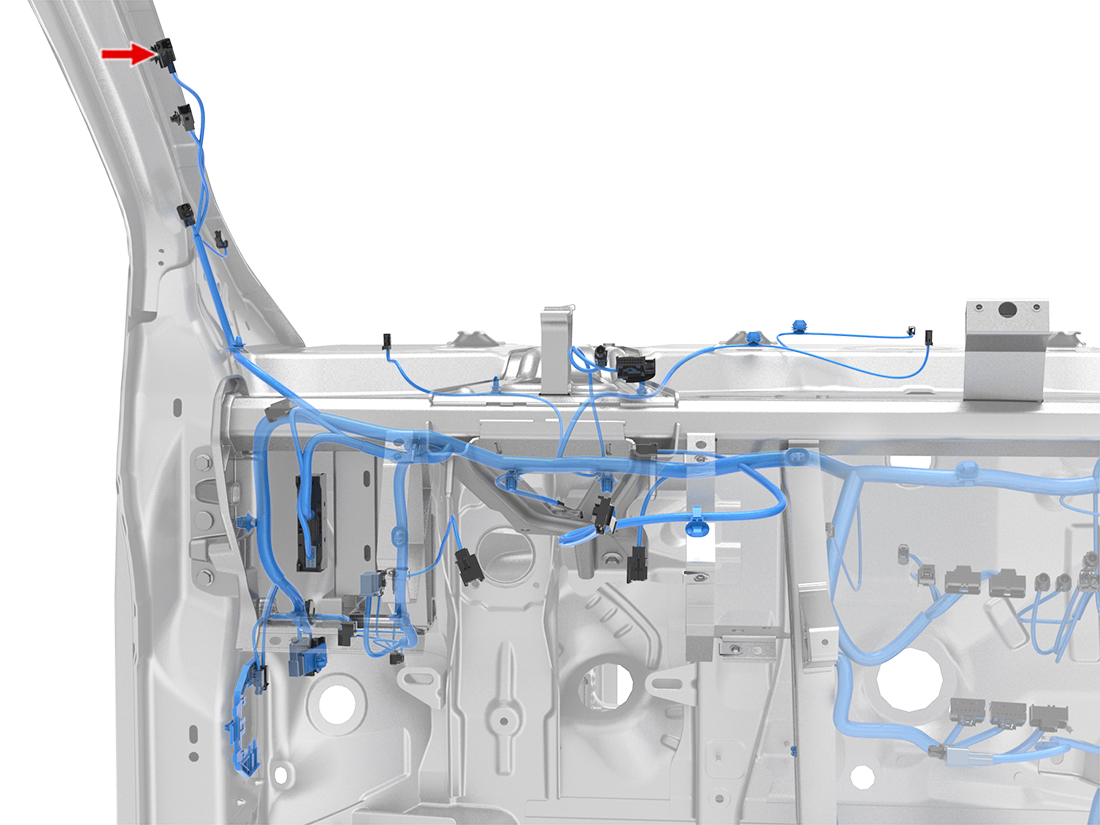

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-3622 | 0.64x0.64M | VT/WH | 0.35 | X170 | 7 | ||
| 2 | SUMITOMO | 8100-3622 | 0.64x0.64M | VT | 0.35 | X170 | 17 |
