X617 - x-lhd-sop8

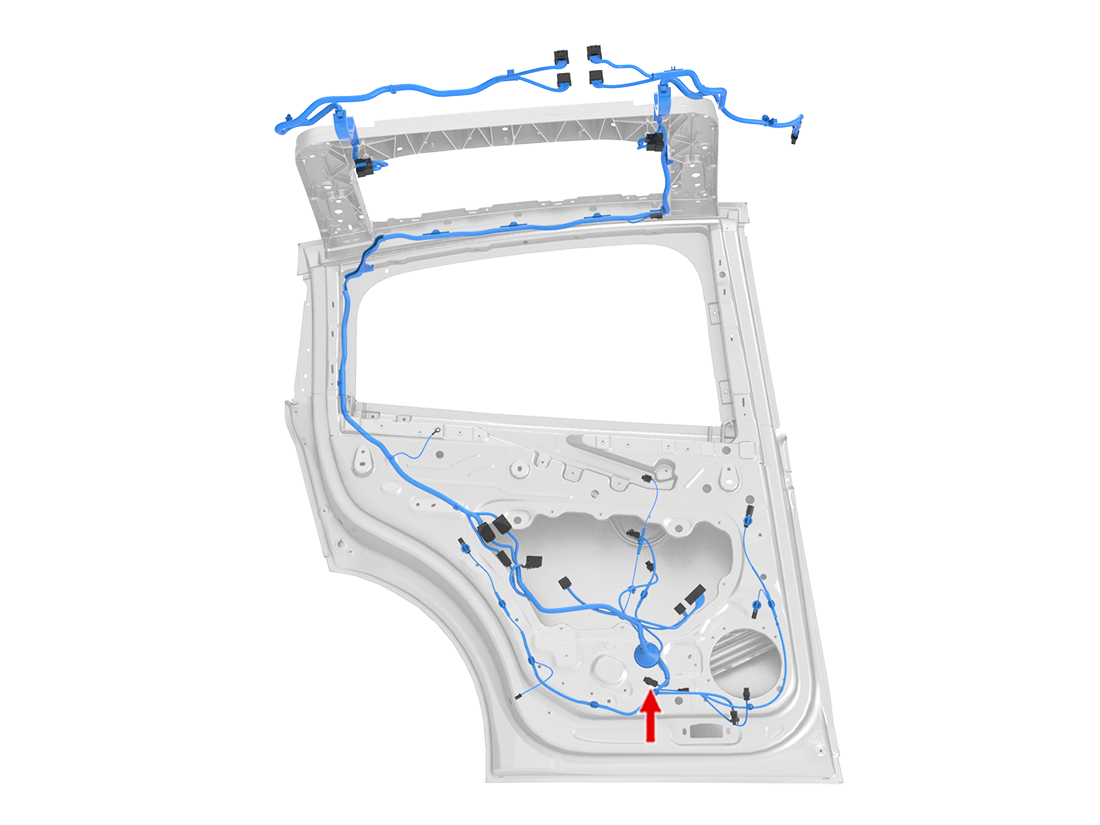

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FCI | 211CC2S1160P | 1.5x0.8F | RD/BK | 0.50 | TESLA | MAT-140-280 | X421 | 40 |
| 2 | FCI | 211CC2S1160P | 1.5x0.8F | GY/WH | 0.50 | TESLA | MAT-140-280 | X421 | 39 |
