X684 - x-lhd-sop8

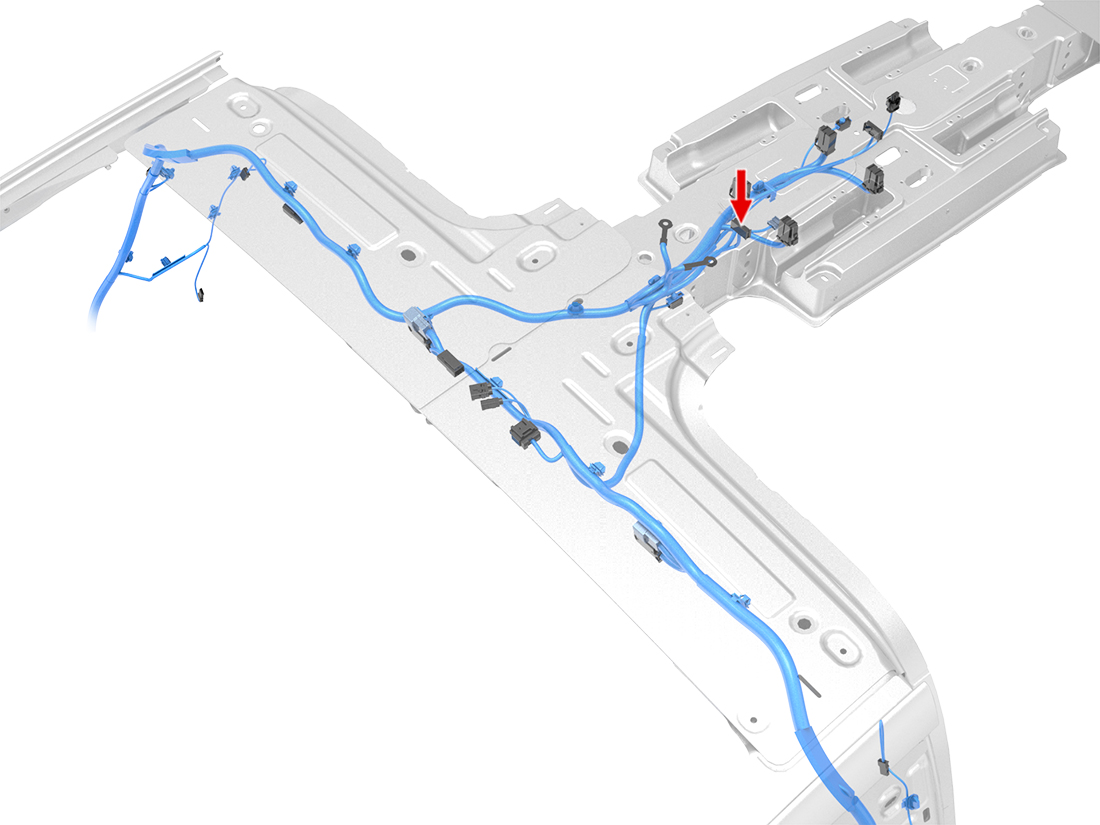

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | MOLEX | 560023-0444 | 0.50x0.4F | WH | 0.13 | X976M | 13 | ||
| 4 | MOLEX | 560023-0444 | 0.50x0.4F | BN | 0.13 | X976M | 20 | ||
| 5 | |||||||||
| 6 | MOLEX | 560023-0444 | 0.50x0.4F | GY | 0.13 | X976M | 11 | ||
| 7 | MOLEX | 560023-0444 | 0.50x0.4F | WH | 0.13 | X976M | 9 | ||
| 8 | MOLEX | 560023-0444 | 0.50x0.4F | BK | 0.13 | X924M | 2 | ||
| 9 | |||||||||
| 10 | |||||||||
| 11 | |||||||||
| 12 | MOLEX | 560023-0448 | 0.50x0.4F | RD | 0.35 | X976M | 17 | ||
| 13 | MOLEX | 560023-0448 | 0.50x0.4F | GY | 0.35 | X976M | 6 | ||
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | |||||||||
| 19 | |||||||||
| 20 | |||||||||
