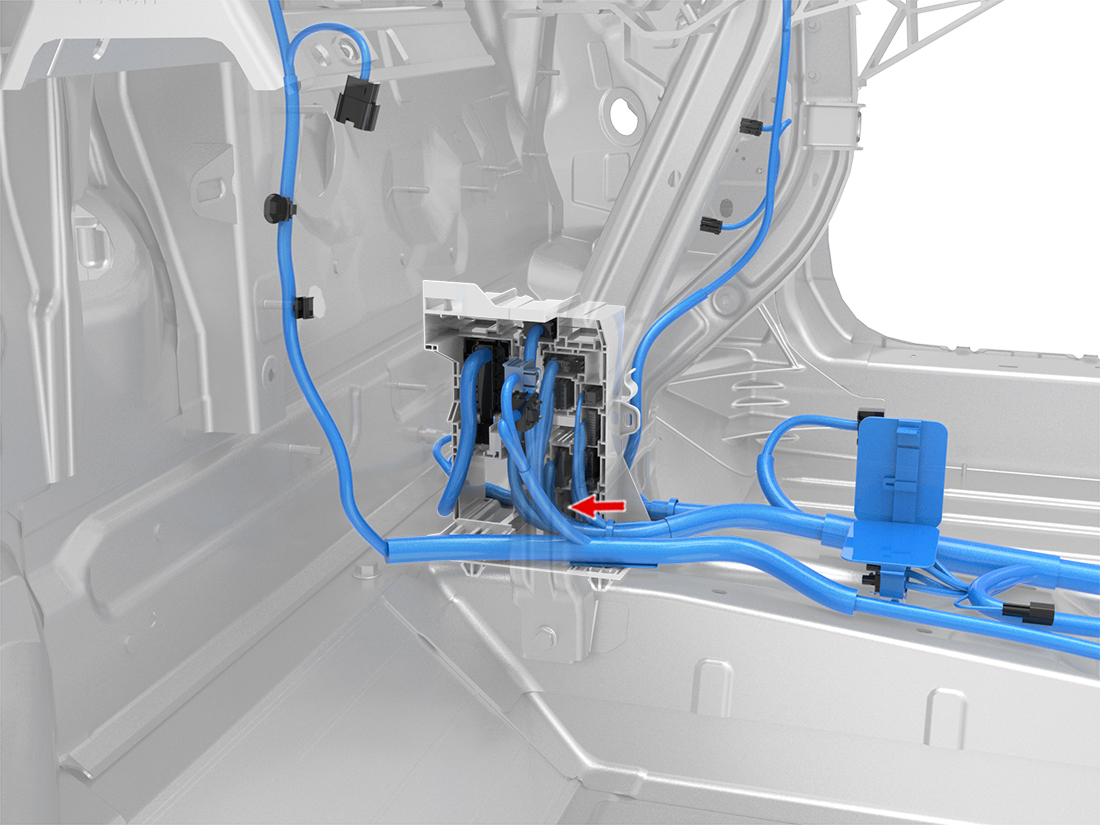

X701 - x-lhd-sop8

Tesla Part Number

1042583-02-A

Connector

SUMITOMO 6098-3927

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8100-3625	0.64x0.64F	BK/VT	0.35	X940	17
3	SUMITOMO	8100-3625	0.64x0.64F	BK/WH	0.35	X945	17
4	SUMITOMO	8100-3624	0.64x0.64F	BK/VT	0.35	X201	53
5	SUMITOMO	8100-3624	0.64x0.64F	WH	0.35	X168	4
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50	X951M	14
7	SUMITOMO	8100-3624	0.64x0.64F	WH	0.35	X925M	9
8	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X927M	2
9	SUMITOMO	8100-3624	0.64x0.64F	GY/WH	0.35	X927M	6
10	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X977M	8
11
12	SUMITOMO	8240-0182	0.64x0.64F	BK	0.13	X912M	17
13	SUMITOMO	8240-0182	0.64x0.64F	BK	0.13	X545	2
14	SUMITOMO	8240-0182	0.64x0.64F	BK	0.13	X544	2
15	SUMITOMO	8240-0182	0.64x0.64F	BK	0.13	X537	1
16
17
18
19	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13	X927M	9
20	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35	X927M	11
21	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13	X977M	10
22
