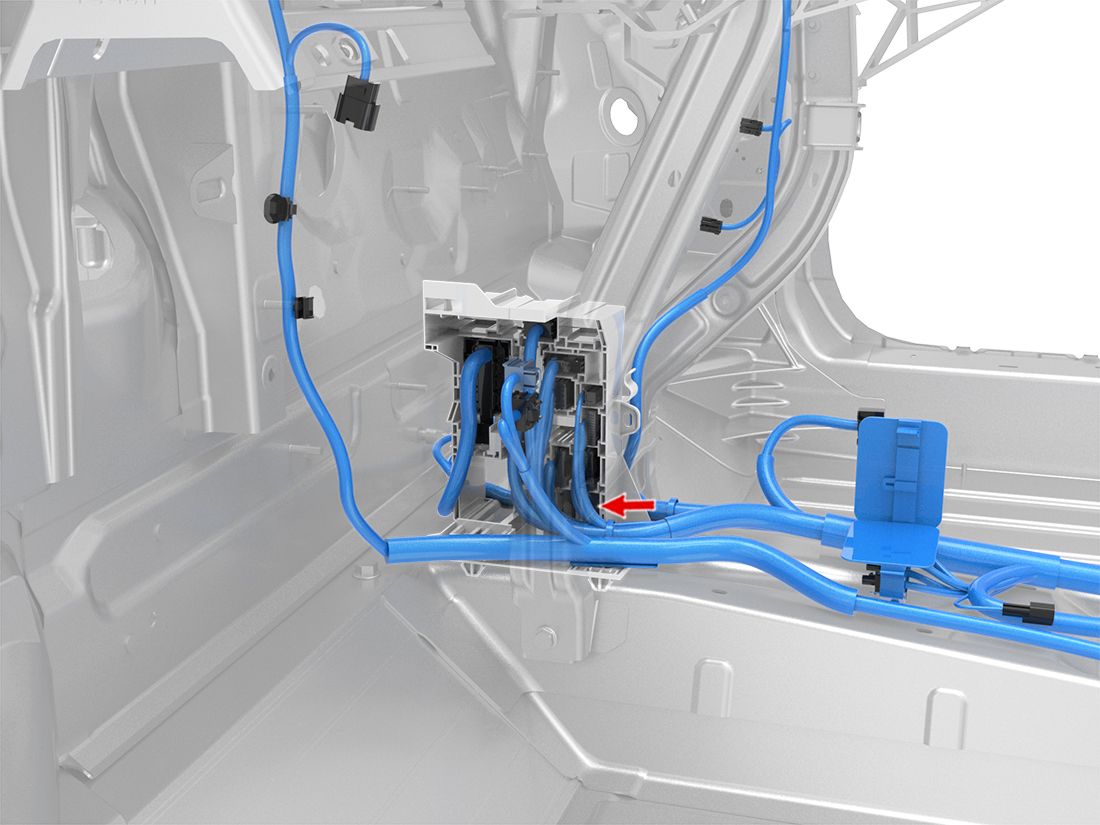

X703 - x-lhd-sop8

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X977M	15
2	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35	X940	4
3	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35	X945	4
4	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35	X201	48
5	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35	X061	4
6	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X911M	5
7	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35	X540	11
8	SUMITOMO	8100-3624	0.64x0.64F	VT/WH	0.35	X535	3
9	SUMITOMO	8100-3624	0.64x0.64F	VT/WH	0.35	X940	12
10	SUMITOMO	8100-3624	0.64x0.64F	VT/WH	0.35	X945	12
11	SUMITOMO	8100-3624	0.64x0.64F	VT/WH	0.35	X927M	4
12	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35	X977M	22
13	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X940	18
14	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X945	18
15	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X201	47
16	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X061	5
17	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13	X911M	15
18	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35	X540A	12
19	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35	X535	2
20	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35	X940	24
21	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35	X945	24
22	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35	X927M	10
