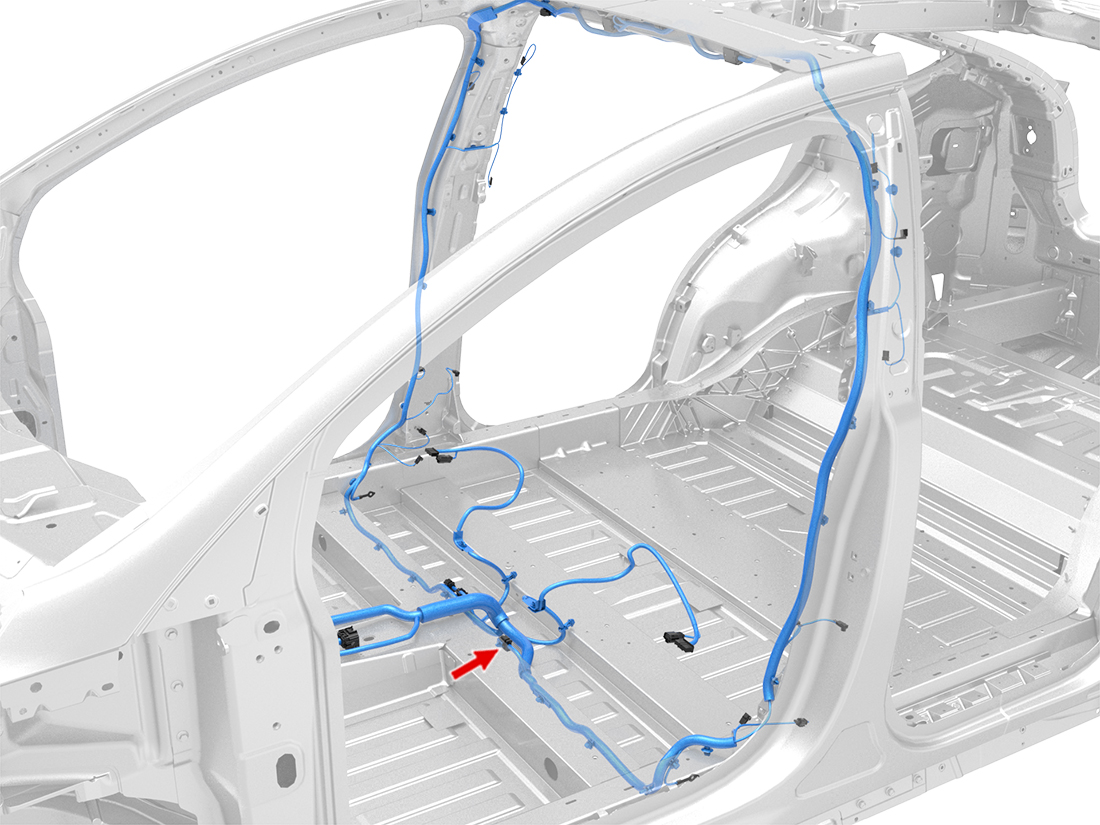

X708 - x-lhd-sop8

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X924M	8
2	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X061	3
3
4	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.50	X958	2
5	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.50	X957	2
6	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X976M	12
7
8	SUMITOMO	8100-3624	0.64x0.64F	RD/WH	0.35	X940	13
9	SUMITOMO	8100-3624	0.64x0.64F	RD/WH	0.35	X020	6
10	SUMITOMO	8100-3624	0.64x0.64F	RD/WH	0.35	X945	13
11
12	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13	X924M	21
13	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13	X061	2
14
15	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50	X958	3
16	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50	X957	3
17	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13	X976M	19
18
19
20	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X924M	17
21	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X940	10
22	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X945	10
